General information about the Solarcheck Mobilcenter
Flush solar systems, fill them with heat transfer media, and vent them in a single step. The latest versions of ZUWA solar filling stations for flushing and filling solar thermal systems are small, easy to transport, and fit upright in the trunk of a car.
Its sophisticated design and low weight make the Solarcheck Mobilcenter the ideal tool for mobile use at the customer's premises.
The Solarcheck Mobilcenter has proven itself in heating and plant engineering for more than 20 years and has already become the global market leader in this market segment.
The powerful, dry self-priming pump, sturdy trolley with large pneumatic tires, height-adjustable telescopic handle, and replaceable canister make it particularly easy for the user to transport and handle professionally.
AREAS OF APPLICATION:
- Flushing, filling, and venting solar thermal systems
Model series at a glance

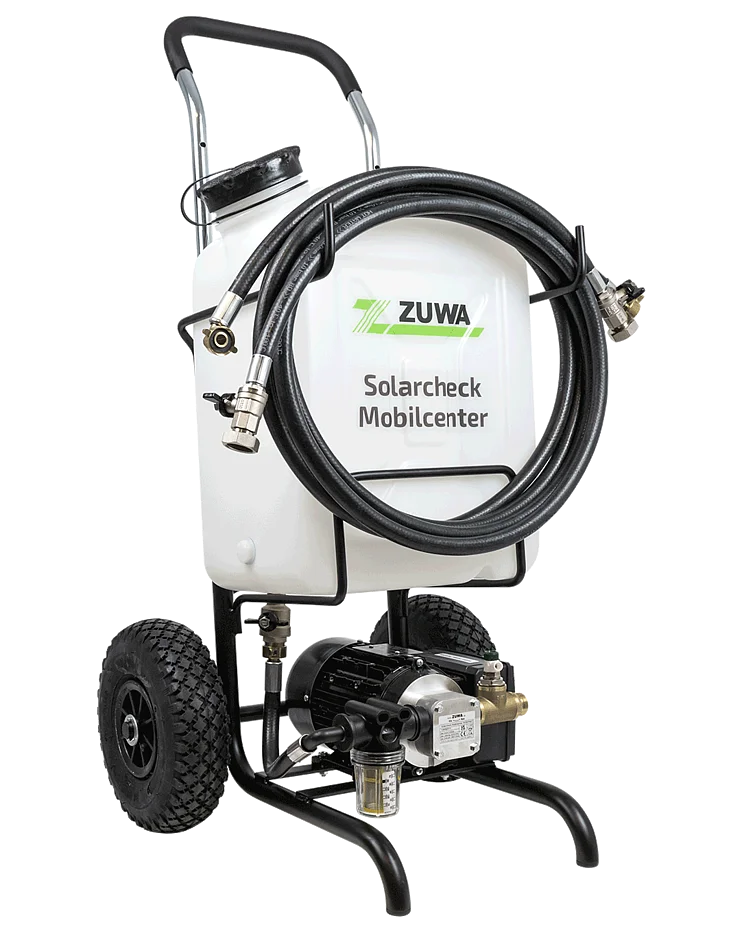

Solarcheck Mobilcenter UNISTAR
UNISTAR 2000-A pump
- Dry self-priming impeller pump
- with glycol-resistant impeller made of Perbunan
Pressure relief valve
The pressure relief valve at the pump outlet allows the filling hose to be relieved after use and then unscrewed from the filling fitting without pressure.
Hoses
- Temperature resistant up to 100°C, hose fittings pressed with quality sleeves
Ball valves at the hose ends
The ball valves at the ends of the hoses are leak-proof and allow the hoses to be pre-filled so that no air is introduced into the solar circuit.
Particularly easy transport
A carrying handle on the back also allows for easy, one-handed carrying over stairs and obstacles. The device rests against the body's axis, making it comfortable to hold. The telescopic handle with soft grip is height-adjustable from 78 to 110 cm. The device is completely leak-proof, both when transported upright and lying down.
Fine filter with sight glass
During the flushing process, the prefilter separates out foreign matter such as scale, flux residues, or chips. Air bubbles in the heat transfer fluid can be detected through the sight glass of the filter cup.
Right-angle return connection
- 90° angle return connection prevents the hose from kinking
- captive caps
Solarcheck Mobilcenter PLUS
Changeover ball valve at the pump inlet
The PLUS version features a changeover ball valve at the pump inlet, which allows suction from external containers and thus direct filling of the system. This eliminates the need to first transfer liquid into the canister, which can be cumbersome, especially with larger volumes. It also makes it easier to flush the pump.
Solarcheck Mobilcenter P80
The P80 is the affordable entry-level model in the Solarcheck Mobilcenter series.
Pump P80
- Robust centrifugal pump made of gray cast iron with a brass impeller
Hoses
- Temperature resistant up to 60°C, hose connections crimped with high-quality sleeves
Familiar structure
Like the Solarcheck Mobilcenter Unistar, these models also feature a height-adjustable telescopic handle and all-terrain pneumatic tires to ensure easy transport.
Solarcheck Mobilcenter P90
With a maximum pressure of 8 bar, this model is particularly suitable for filling larger solar systems or systems on high-rise buildings and extensive industrial complexes.
P90 pump
- Robust centrifugal pump made of gray cast iron with a brass impeller
Hoses
- Temperature-resistant up to 80°C, hose connections pressed with quality sleeves
Familiar design
Like the Solarcheck Mobilcenter Unistar, these models also feature a height-adjustable telescopic handle and all-terrain pneumatic tires to ensure easy transport.
OVERVIEW OF OUR SOLARCHECK MOBILCENTER
| Solarcheck Mobilcenter | UNISTAR 2000-A | UNISTAR 2000-A PLUS | P80 | P90 |
|---|---|---|---|---|
| Pump | Dry self-priming impeller pump with glycol-resistant impeller | self-priming centrifugal pump | ||
| Max. flow rate | 30 l/min* | 30 l/min | 30 l/min | |
| Max. delivery pressure | 5 bar | 5 bar | 5 bar | |
| Max. media temperature | 90°C | 60°C | 80°C | |
| Motor | 230 V, 50 Hz with thermal motor protection | |||
| Hoses | ½“ EPDM hose with ball valves | ½“ PVC fabric hose | ¾" EPDM hose | |
| Filter | Fine filter with sight glass | |||
| Canister | UV-stabilized PE canister with large closable filling opening, fill level scale, and shut-off valve at the outlet | |||
| Canister volume | 30 l | |||
| Pressure relief valve | included as standard ✅ | not included ❌ | not included ❌ | not included ❌ |
| Ball valve (pump inlet) | not included ❌ | included as standard ✅ | not included❌ | not included ❌ |
| Trolley | Welded, sturdy tubular frame with telescopic handle and soft grip | |||
| Dimensions (H x W x D) | 76-100-110 x 49 x 51 cm packaging dimensions: 80 x 40 x 50 cm | |||
| Weight | 21 kg | 22 kg | 22 kg | |
| Item no. | 134052V11 | 134052V11PLUS | 134053V11 | 134060-V11 |
* For a higher flow rate (60 l/min or 90 l/min), use our FLUSH PRO Mobilcenter.
