Reliable and high-quality drum pumps
Barrel pumps are ideal for filling or refueling with oils or fuels such as diesel, gasoline, or even kerosene. A barrel pump offers significantly higher delivery pressure and thus a higher flow rate compared to draining or running off higher-level IBCs and barrels, which greatly accelerates the dispensing or refueling process.

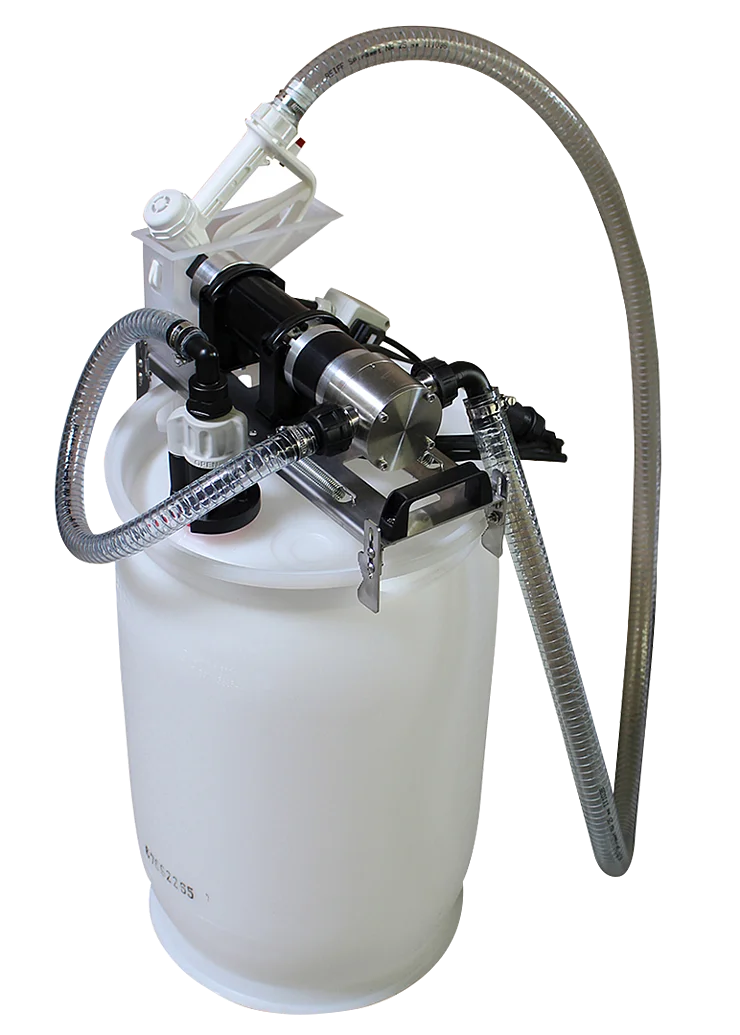

IBC and drum pumps with impeller pumps for a wide range of media
The flexible impeller pumps are resistant to many different media and have excellent suction properties. An air-water mixture is no problem for the pump, meaning that containers can be emptied completely.
Customized combinations of impellers and seals are available on request.
Ideal for pumping agrochemical liquids such as pesticides or fertilizers – whether directly from the barrel or for transferring from an IBC. Available in 12/24V and 230V versions – lightweight, powerful, and suitable for many applications. The UNISTAR and NIROSTAR models are used for these impeller pumps. Available in sets for different drum sizes (340-380 mm diameter and 540-580 mm diameter).
The IBC version of the barrel pump allows the pump system to be mounted either on the IBC or on the wall.
Features:
- Dry self-priming impeller pump
- Pump housing made of aluminum or stainless steel
- Impeller materials: NBR or Viton
- AC and DC motors
- Includes manual nozzle and nozzle holder
- 3.5 m discharge hose with spiral insert

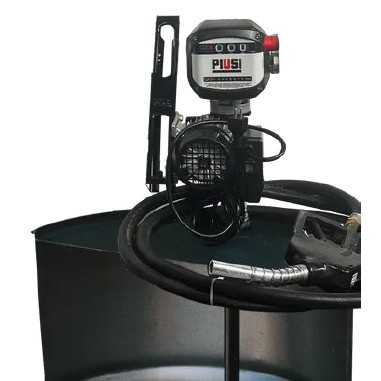

Barrel pumps for diesel and oils

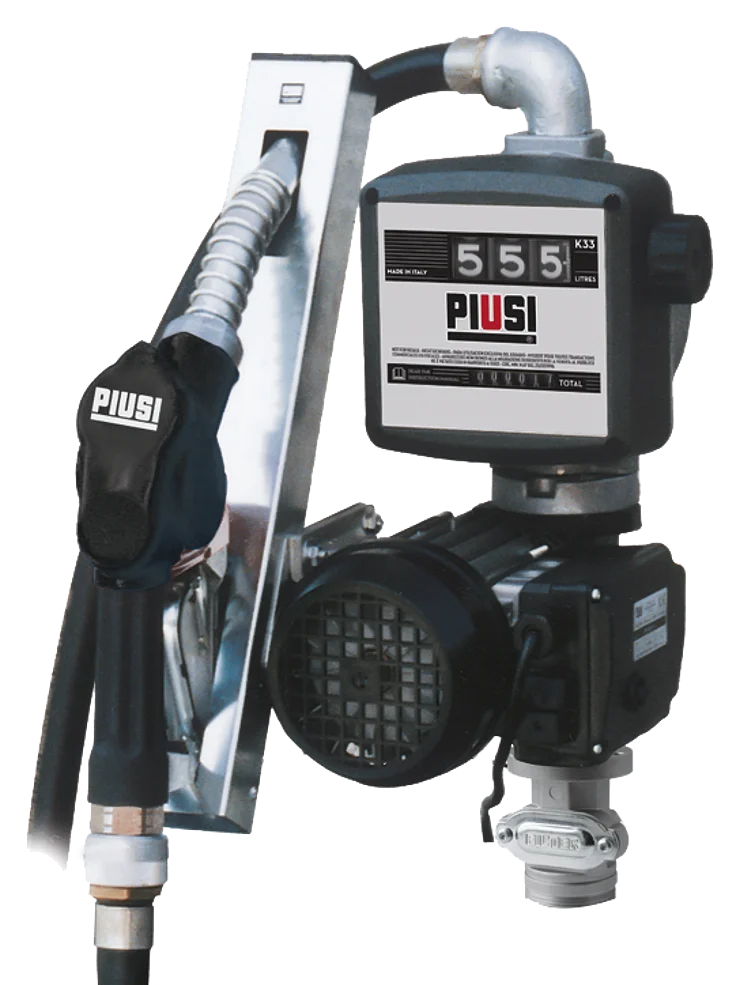

Panther barrel pump for DIESEL
Diesel:
These barrel pumps are equipped with the Panther vane pump and come with an automatic nozzle as standard. The nozzle is also suitable for passenger cars. Variants with meters are also available.
Features:
- 1" suction pipe
- Barrel connection with check valve and filter
- 4 m filling hose ¾", connection 1"
- A60 automatic fuel nozzle
- Optionally available with type-approved fuel nozzle

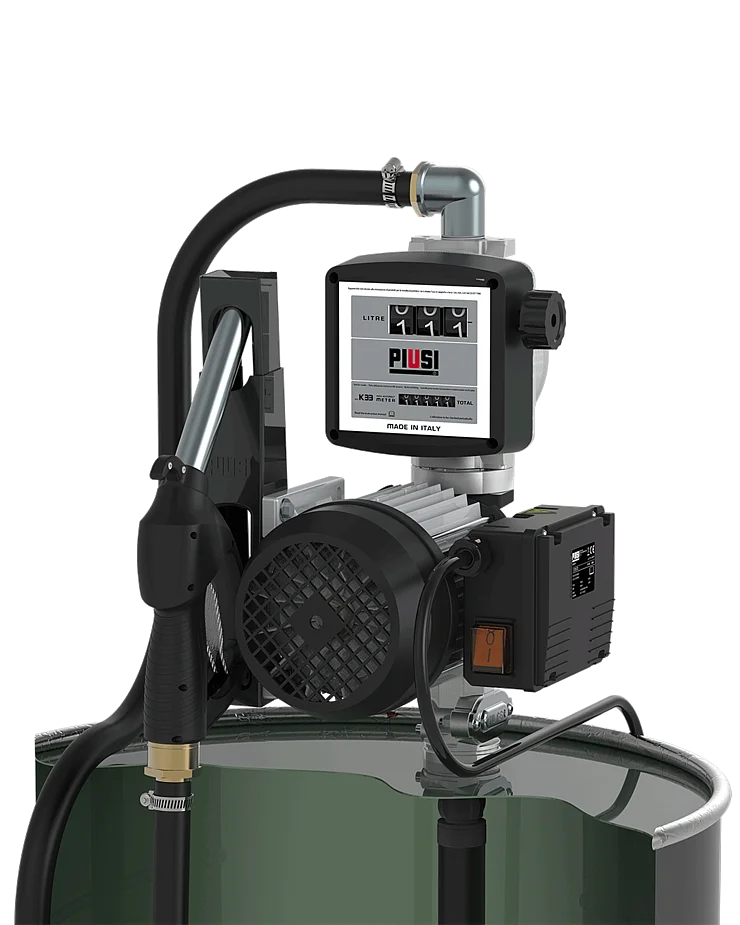

Barrel pumps for oils
Oil:
Two pump variants are used in these sets:
- The Viscomat 70 vane pump for viscosities up to 500 cSt.

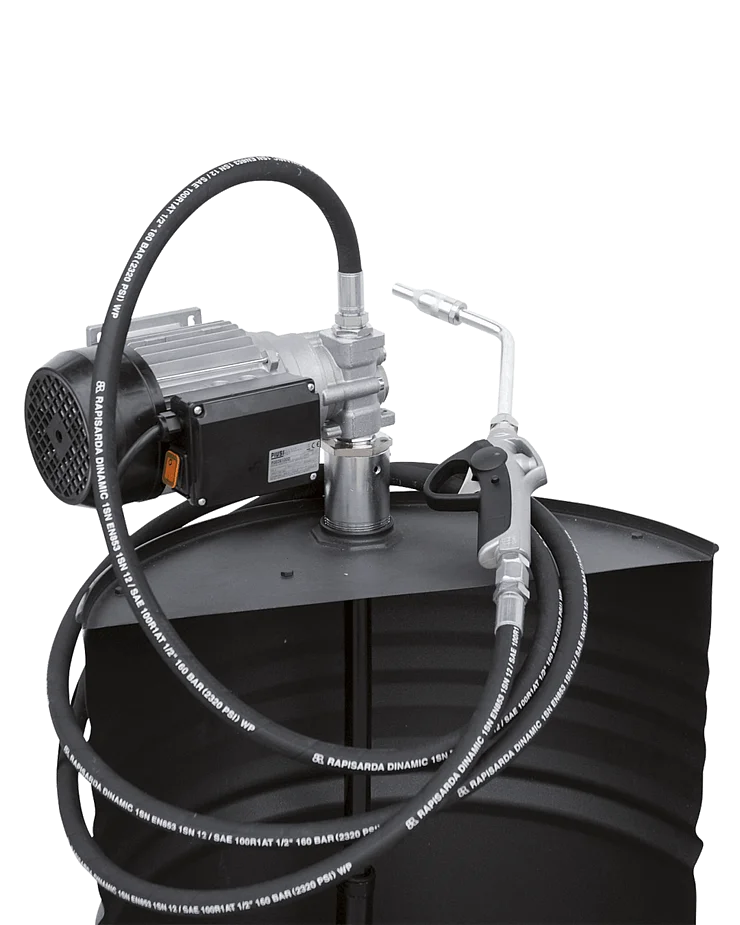

With an additional version featuring a mechanical counter. - The Viscomat 200 gear pump for viscosities up to 2000 cSt.
With an additional version featuring a digital counter mounted directly on the nozzle.
Features:
- 1" suction pipe
- Barrel connection with check valve and strainer
- 4 m filling hose ¾", connection 1"
- Viscomat 70 with mechanical nozzle
- Viscomat 200 with mechanical nozzle with drip protection valve
Viscomat 70 barrel pumps can also be used for diesel fuel.
Barrel pumps for gasoline, kerosene, and diesel (ATEX)
The barrel pumps in the "EX" gasoline pump series meet the strict specific criteria of the ATEX/IECEx directive (II 2 G Ex d IIA T4 Gb) and are suitable for pumping gasoline and E15, kerosene, diesel or ASPEN 2/4, as well as AVGAS100/110LL and JET A/A1.
Features:
- Suction-side telescopic tube (only for EX50 and EX56)
- 2" drum connection with integrated dirt filter, check valve, and pressure relief valve
- Nozzle holder
- Water separation filter (for EX50 and EX56 drum pumps)
- ATEX gasoline hose, 1", 5 m (¾", 4 m for EX50 and EX56)
- Automatic nozzle
Due to the wide variety of applications for sizes EX100 and above, these sets do not include a telescopic suction tube. This must be selected by the customer to suit their specific requirements.
Barrel pumps for AdBlue®
The DRUM refueling set is the ideal system for small delivery quantities for commercial vehicles and agricultural vehicles.
The system is also available with an automatic fuel nozzle.
- Dry self-priming diaphragm pump
- 230 V (DC on request)
- 6 m filling hose
- Nozzle holder with drip catcher
- Suction pipe and AF2 connection
Compressed air pumps for oils and greases
A wide variety of oils and high-performance greases are used in automotive workshops. They lubricate, keep machine parts moving, protect against moisture and contamination, and thus reduce mechanical wear.
ZUWA offers suitable compressed air pumps for this purpose, enabling these tasks to be carried out cost-effectively and efficiently.
The compressed air oil pump is available in a version for wall mounting or for barrels with a suction pipe. Compressed air pumps are available with suction pipes of different lengths for different barrel sizes:
- 18-30 kg barrels
- 50-60 kg barrels
- 180-200 kg barrels
The effective dual action improves efficiency and reduces air consumption. The pumps, which are available in various lengths, also feature a threaded ring for secure attachment to the barrel or wall bracket.
The materials used in these pumps guarantee maximum performance and durability even under critical operating conditions.
- Flow rate up to 21.5 l/min
- Compression ratio 3.5:1
- Compression ratio 5.5:1
- Noise level 77dB
The P3.5:1 Pro+Silent compressed air oil pumps are specially designed for dispensing medium-viscosity oils over short to medium distances.
The P5.5:1 Pro+Silent compressed air oil pumps are specially designed for dispensing medium to high-viscosity oils over medium distances.
