General information about the FLUSH PRO Mobilcenter
The FlUSH PRO Mobilcenter is a practical filling system for professional use. In addition to filling larger solar systems with multiple collectors, ground collectors for geothermal energy systems, or heating systems such as underfloor heating or central heating, it can also be used to flush and vent the pipe system.
The heart of the filling station is the dry self-priming impeller pump. It generates a high delivery volume, which is important for flushing air pockets out of the collector circuit. Depending on the model, the delivery rate ranges from 60 to 90 l/min and the delivery pressure is a maximum of 5 bar.
AREAS OF APPLICATION:
Flushing, filling, and venting larger solar systems, ground collectors, and heating systems

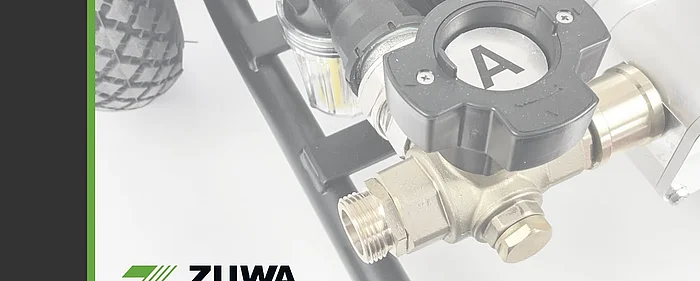

The two multifunctional taps allow external containers to be connected, e.g. for suction from IBCs, and various work steps to be carried out one after the other without having to reconnect the hoses.
The professional tool that makes flexibility possible!
The ability to carry it with one hand and expand it at any time with our combinable accessory sets makes it the perfect all-rounder.
Function and workflow
Mixing heat transfer fluid
1 + 2
Concentrate and water are sucked in from the two external canisters and pumped back again.
Heat transfer fluid is mixed through the Spülprofi circuit.
Filling and flushing the system
1 + 3 +4
Flow: Heat transfer medium is pumped directly from the external canisters into the heat pump system (particularly practical for large quantities of liquid).
Return flow: The heat pump system pumps directly into the internal tank.
Flushing and venting the system
3 + 4 + 5
After filling, switch to internal circulation between the canister and the system for venting. This is also possible with flow direction reversal.
Model series at a glance
FLUSH PRO Mobilcenter 60/30
The FLUSH PRO Mobilcenter is a practical filling and flushing system for professional use. In addition to filling larger solar systems with multiple collectors, ground collectors for geothermal energy systems, or heating systems such as underfloor heating or central heating, it can also be used to flush and vent the pipe system.
The Heart of the matter
The dry self-priming impeller pump is the heart of the flushing professional. It generates a high delivery volume, which is important for flushing air pockets out of the collector circuit. The delivery rate is up to 60 l/min, with a maximum delivery pressure of 5 bar.
The pump can also easily pump an air-water mixture!
EQUIPMENT:
- Dry self-priming
- 2 x 3 m supply and return hose with ball valves
- Pressed hose connection
- Trolley made of welded, sturdy compact chassis with telescopic extension and easy-rolling pneumatic tires
- Impeller pump with glycol-resistant impeller
- Two multifunctional valves (suction and pressure side)
- UV-stable PE canister with large closable
- filling opening and level gauge
The professional tool that makes flexibility possible!
The ability to carry it with one hand and expand it at any time with our combinable accessory sets makes it the perfect all-rounder.
FlUSH PRO Mobilcenter 90/55
The 90/55 model combines higher liter output with a larger fluid container, making it ideal for filling larger solar systems. Transparent PVC fabric hoses and an optional filter with sight glass give you an overview of air pockets and the degree of contamination in the fluid in the tank.
- Flow rate: max. 90 l/min
- Tank: 55 liters
- Can be used with optional filter or filter bag (see accessories)
FLUSH PRO Mobilcenter 90/120
The FLUSH PRO Mobilcenter 90/120 is used for filling large geothermal systems and central heating systems – precisely when very large quantities of liquids need to be transported.
- Flow rate: max. 90 l/min
- Tank: 120 liters
- Can be used with optional filter or filter bag (see accessories)
| FLUSH PRO | MC 60/30 | MC 90/55 | MC 90/120 |
|---|---|---|---|
| Pumps | Dry self-priming impeller pump with glycol-resistant impeller | ||
| Max. flow rate | 60 l/min | 90 l/min | |
| Max. delivery pressure | max. 5 bar | ||
| Max. medium temperature | 90°C | 60°C | |
| Motor | 230 V, 50 Hz with thermal motor protection | ||
| Hoses | ¾" EPDM hose with ball valves | ¾"" PVC fabric hose | |
| Filter | Fine filter with sight glass | optional | |
| Canister | UV-stabilized PE canister with large closable filling opening, fill level scale, and shut-off valve at the outlet | ||
| Canister volume | 30 l | 55 l | 120 l |
| Pressure relief valve | not included ❌ | included as standard ✅ | included as standard ✅ |
| Ball valve (pump inlet/pump outlet) | included as standard ✅ | ||
| Trolley | welded, sturdy tubular frame with telescopic handle and soft grip | welded, sturdy tubular frame | |
| Dimensions (H x W x D) | 76-100-110 x 49 x 51 cm | 105 x 49 x 64 cm | 83 x 70 x 140 cm |
| Weight | 25 kg | 39 kg | 47 kg |
| Item no. | 134058V12 | 1340581 | 1340582 |
