Vane pumps

ZUWA vane pumps – powerful, reliable, and versatile

ZUWA vane pumps are ideal for pumping diesel, heating oil, and various low-viscosity oils. Thanks to their robust design, compact dimensions, and reliable technology, they are the first choice for refueling, decanting, or industrial applications—whether stationary or mobile.

Areas of application

Refueling construction machinery, trucks, tractors, boats, and more
Filling and emptying heating oil tanks
Transferring diesel, heating oil, and low-viscosity oils (without solid particles)
Reliable operation even at low temperatures

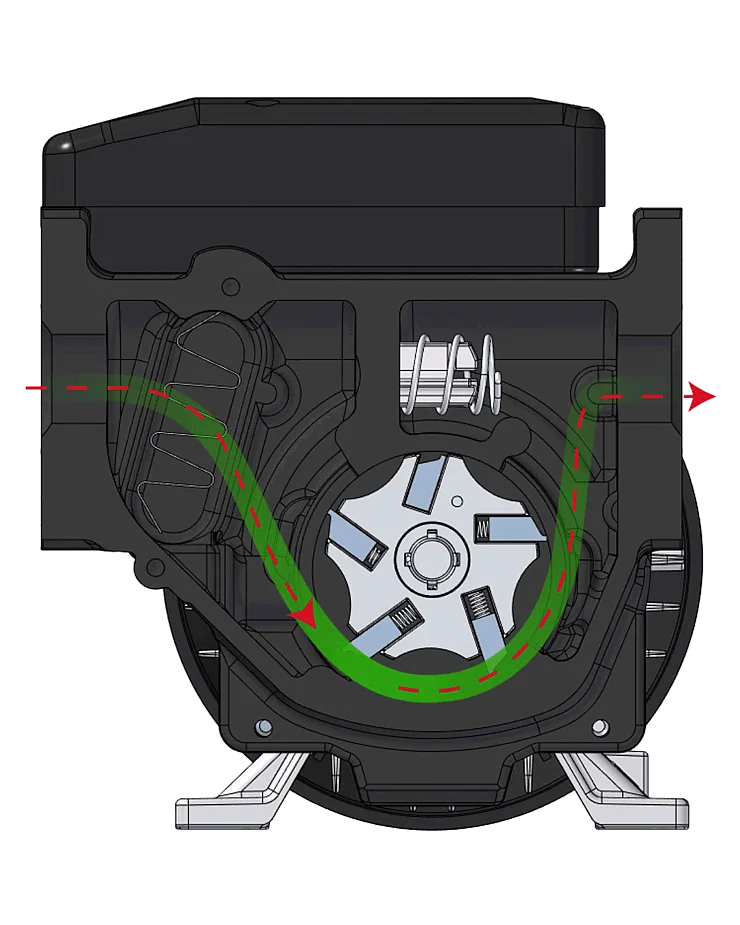

How the Viscomat (left) and Panther (right) vane pumps work

Key features

ZUWA's vane pumps feature an eccentrically designed housing, with lamellas (sliders and springs) creating sealed chambers that expand and contract as the motor rotates. When the chambers expand, they suck in the clean pumped medium; when they contract, the medium is expelled again via the pressure side.

Dry self-priming: quick and easy commissioning
Suitable for: diesel and oils
Various voltages available: 12 V, 24 V, 230 V, or 400 V
Extensive range of accessories available: e.g., hose sets, meters, nozzles, cables, and clamps

Model series at a glance

Panther-Series for Diesel

Models 56 | 72 | 90

The Panther series comprises compact vane pumps with high throughput for diesel and clean heating oil. Ideal for dispensing systems, workshops, or gas station applications.

Flow rate:
35 –90 l/min at 2.900 rpm

Delivery pressure:
up to 2 bar

500 μm filter & integrated lift protection device
Built-in pressure relief valve (bypass)
Panther 72 model also available for BIO-Diesel

Viscomat-Series for diesel and oil

Viscomat 70 | 90 for diesel and oils

Vane pumps from the Viscomat series are suitable for clean oils and Diesel with a viscosity of up to 500 cSt (e.g., heating oil, vegetable oil, motor oil) with a maximum media temperature of 60 °C.

Flow rate: 25–50 l/min at 1,450 rpm

Delivery pressure: up to 6 bar

Specially designed blades for oils
Low-noise operation (<70 dB)
Delivery head: up to 4 m with foot valve
Integrated flow valve for volume control (except VISCOMAT 90-m)

E-Series for diesel

Models 80 | E 120 | E140

The pumps in the E series impress with their consistent performance across the entire pressure range at a low speed of only 1150-1450 rpm, ensuring long-lasting performance.

Flow rate: 30–140 l/min at 1,150–1,450 rpm

Delivery pressure: up to 2.8 bar

Built-in pressure relief valve (bypass)
Model E 120 also available for biodiesel

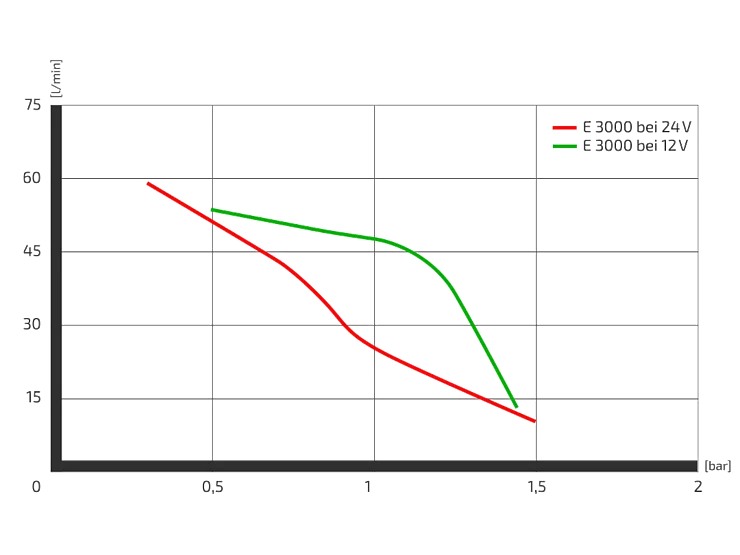

E 3000-Series for diesel

E 3000 | Carry E 3000

The E 3000 series offers powerful vane pumps for diesel fuel with a DC motor. The compact size of the 12 V | 24 V pumps makes them mobile and flexible in use. The pumps from the E 3000 series can be used to reliably and safely refuel construction machinery, trucks, and cars (e.g., also from mobile tanks).

Flow rate: 30–50 l/min at 1,500–2,900 rpm

Feed pressure: 1,5 bar

Built-in pressure relief valve (bypass)
Optionally available with horizontal or vertical connections
Also available for biodiesel, as a refueling box, or as a barrel pump
Maximum duty cycle 30 min

BI 100-Series for diesel

for diesel

The BI 100 series vane pumps for DC operation are ideal for mobile and self-sufficient use on construction sites or in agriculture.

Flow rate: 85 liters per minute

Delivery pressure: 1.2 bar

Self-priming vane pump
for direct and fast diesel refueling on site
Maximum operating time 30 min

EX-Series (ATEX for gasoline and diesel)

for gasoline, E15, diesel, kerosene, ASPEN 2/4, AVGAS100/110LL, JET A/A1

The gasoline pumps meet the strict specific criteria of the ATEX/IECEx directive for product safety in Europe (II 2 G Ex d IIA T4 Gb) and are suitable for pumping gasoline and E15, kerosene, diesel or ASPEN 2/4, as well as AVGAS100/110LL and JET A/A1.

The EX 50 to EX 140 models with a 230V power supply are available for stationary installation. The EX 50 and EX 75 models are also available in 12V versions.

The EX GO! is the compact and mobile version of the EX series. The 12V pump is equipped with a cable and clamps, making it ready for immediate use. Thanks to its small dimensions, it is easy to transport and position. This means that nothing stands in the way of off-road use, whether with cars, trucks, construction machinery, boats, small aircraft, or off-road vehicles!

Flow rate: 32–140 l/min

Feed pressure: up to 2 bar

Robust and compact design
Cast iron housing
On/off switch
Anti-noise filter (electromagnetic compatibility EMC)
Built-in bypass valve
Thermal circuit breaker

Consulting and service

For viscous or temperature-sensitive media, we recommend individual consultation. Our team will be happy to assist you in selecting the right ZUWA pump for your application.
