Our plant protection cart and trailer sprayers are designed with diaphragm pumps for use in open fields and greenhouses. Ideal for weed control or pest control in small and medium-sized crops. Tank capacities from 30 to 300 liters.
Available mains-powered or mains-independent:
- 4-stroke engines
- 230 volts
- 400 volts
- with PTO connection
Cart sprayers
F30 Compact
The F30 COMPACT has been specially designed for plant protection, foliar fertilization, and plant strengthening, and is ideal for gardening and landscaping, municipal facilities, and fruit and vegetable cultivation. Thanks to its compact design and pneumatic tires, the device is easy to steer and control, especially in narrow aisles and on uneven ground.
Features & Specifications:
- Height-adjustable telescopic handle
- Carrying handle on the back for comfortable carrying with one hand
- 10 m pressure hose
- 750 mm spray lance
- Max. flow rate 11.9 l/min
- Max. delivery pressure 15 bar
F55
The F55 wheelbarrow sprayer is the ultimate all-rounder. The 55-liter tank capacity is suitable for mobile use in greenhouses or sales rooms as well as for mobile outdoor use. The narrow, one-piece chassis makes it perfect for small corners and narrow passages. The high pressure of up to 25 bar also allows this device to be used for spraying trees and other large plants.
Features & Specifications:
- Tire size: 26 x 8.5 cm
- Max. flow rate 23 l/min
- Max. delivery pressure 25 bar
F120
The F120 cart sprayer is the first choice for larger quantities of spray material. A large 120 l tank and a delivery rate of up to 32 l/min ensure rapid distribution of liquids. Thanks to its high pressure of up to 30 bar, the F120 is also suitable for outdoor use on larger areas, such as when spraying trees.
Features & characteristics:
- Turntable for swiveling the hose reel
- Max. flow rate 23 l/min
- Max. delivery pressure 25 bar
Optional as an extension:
- Spray rake for mounting on the rear of the cart and swivel castor at the front
- Manual or automatic hose reel
- 3/8" hose can be customized to customer requirements
F200 / F300
The F200/300 cart sprayer provides greater stability and easier maneuverability thanks to its chassis (with two swivel casters) and large pneumatic tires. Additional advantages: Large pneumatic tires and removable handle.
Features & Specifications:
- Tire size 40 x 10 cm
- Max. flow rate 32 l/min
- Max. delivery pressure 30 bar
Optional as an extension:
- Swivel hub for easy handling of the hose reel
- Manual or automatic hose reel
- Wide tires 48 x 20 cm
- With MC 20 pump type for lower pressure
Trailer sprayer
EAS 200 / EAS 300

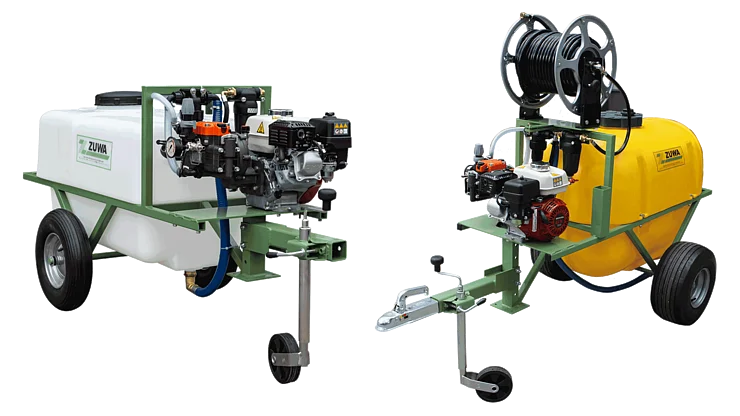

The ZUWA EAS 200 / EAS 300 trailer sprayer is suitable for plant care, weed control, and applying plant and lawn fertilizer to medium-sized areas.
It can be attached to all common agricultural vehicles, including tractors, narrow-track tractors, and lawn tractors, provided they have a ball head coupling or a drawbar eye.
The basic version of the trailer sprayer consists of a chassis with large pneumatic tires, a drawbar that can be adjusted in height as required, and a drawbar support wheel with crank. The spray pump is available with either a 400-volt electric motor or a 4-stroke Honda engine. The sprayer can be equipped with either a 200-liter or 300-liter liquid tank.
Features & characteristics:
- Max. container size 300 l
- Tire size 40 x 10 cm
- Max. flow rate 30 l/min
- Max. delivery pressure 30 bar
EAS 300 with MP 30 (right)
We will build your device to suit your specific conditions on site!
You can optionally upgrade your trailer sprayer with a manual or automatic hose reel. A turnstile for swiveling the hose reel ensures easy handling. We will cut the hose to the desired length for this purpose. A spray pipe or spray gun can be attached for spraying the spray agent.
Mounted sprayer

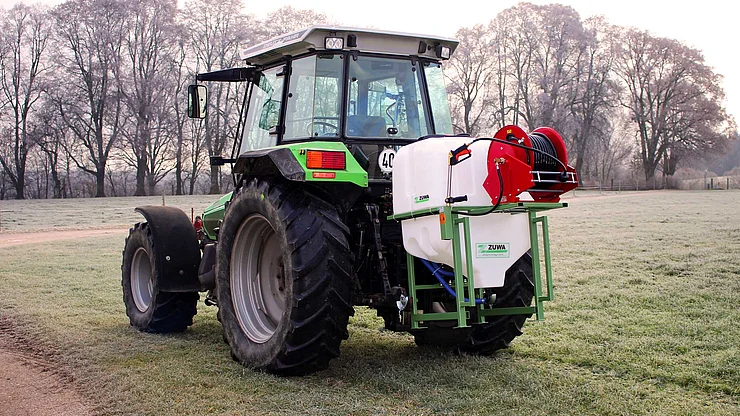

The ABS 300 mounted sprayer is ideal for applying pesticides, plant fortifiers, or fertilizers on medium-sized agricultural land. It can also be used without any problems for applying EM microorganisms.
The robust container has a capacity of 300 liters and is equipped with an easy-to-read level indicator. The integrated diaphragm pump enables a working pressure of up to 30 bar, which can be continuously adjusted via the pressure regulator.
The mounted sprayer is attached using the tractor's three-point hitch. This allows the implement to be quickly and conveniently adjusted to the desired working height using the hydraulic control. The pump can also be conveniently operated while driving using the remote connection included in the scope of delivery.
The mounted field sprayer is optionally available with a spray rake. A wide range of different nozzles is available for this purpose, which can be positioned individually on the spray boom.
We will build your device to suit your specific conditions on site!
Optionally, you can upgrade your trailer sprayer with a manual or automatic hose reel. A turnstile for swiveling the hose reel ensures easy handling. We will cut the hose to the desired length. A spray pipe or spray gun can be attached for spraying the spray agent.
Watering device
F120

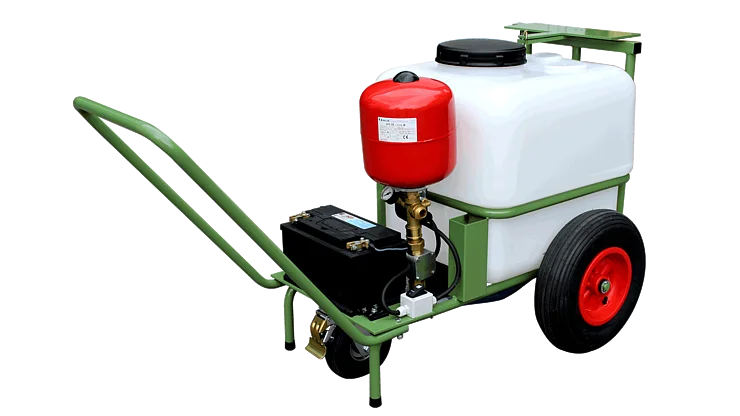

The F120 watering device is equipped with a dry self-priming impeller pump and has a robust chassis that has been specially developed for use in parks and cemeteries. The pump is battery-powered (battery not included) and is equipped with a ZUMATIC pump control system. This ensures that the pump is automatically switched on and off as soon as the watering pipe is opened or closed.
Features & characteristics:
- 12 V drive with at least 80 A/h
- Max. flow rate 16 l/min
- Max. delivery pressure 1.5 bar
