Fuel nozzlesManual and Automatic

Manual and automatic fuel nozzles

Fuel nozzles are standard equipment for all fueling systems. Fuel nozzles make it easy to dispense fuels such as gasoline and diesel, as well as AdBlue and oils. ZUWA fuel nozzles are suitable for refueling all types of machines and are easy for users to operate.

The following range provides an overview of which fuel nozzles are suitable for your requirements and explains the types of liquids for which they can be used.

Manual

Manual nozzles are a simple and cost-effective way to dispense and fill liquids. Due to their design, they have low flow loss and are lighter than automatic nozzles. With maximum flow rates of up to 150 liters/min, they are ideal for filling small and medium-sized containers.

Automatic

An automatic fuel nozzle stops refueling when the tank is full thanks to a sophisticated mechanism. These models are therefore particularly suitable for untrained hands at public or company filling stations. With a maximum flow rate of up to 280 liters, these fuel nozzles are also suitable for refueling larger quantities.

Max. flowrate
1
280
1 280
Max. operating pressure
3
100
3 100
Nozzle type
Fluids:

Automatic Nozzle A120 BIO for Diesel

Max. flowrate 120 l/min
Max. flowrate 120 l/min

Art. Nr. P610B00

Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,8 kg

Automatic Nozzle A120 for Diesel

Max. flowrate 120 l/min
Max. flowrate 120 l/min

Art. Nr. 131070

Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,8 kg

Automatic Nozzle A140 for Diesel

Max. flowrate 140 l/min
Max. flowrate 140 l/min

Art. Nr. P61020

Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,7 kg

Automatic Nozzle A280 for Diesel

Max. flowrate 280 l/min
Max. flowrate 280 l/min

Art. Nr. 1310250

Connection 1 ½" ft
With swivel
Spout diameter: 38,5 mm
weight 3,7 kg

Automatic Nozzle A60 f. Diesel, with type approva

Max. flowrate 70 l/min
Max. flowrate 70 l/min

Art. Nr. 131033GN

Connection 1" iG
With swivel
With type approval EN 13012
weight 1,4 kg

Automatic Nozzle A60 for Diesel

Max. flowrate 70 l/min
Max. flowrate 70 l/min

Art. Nr. 131033ZU

Connection 1" ft
With swivel
Spout diameter: 24 mm
weight 1,4 kg

Automatic Nozzle A70 BIO for Diesel

Max. flowrate 70 l/min
Max. flowrate 70 l/min

Art. Nr. P603B00

Connection 1" ft
With swivel
Spout diameter: 24 mm
weight 1,4 kg

Automatic fuel nozzle A140 ATEX

Max. flowrate 140 l/min
Max. flowrate 140 l/min

Art. Nr. P22675

Connection 1" ft
Without swivel
Fluids: Diesel, gasoline, kerosene
weight 1,7 kg

Automatic fuel nozzle A50 ATEX

Max. flowrate 60 l/min
Max. flowrate 60 l/min

Art. Nr. P61302

Connection 1" ft
With swivel
Fluids: Diesel, gasoline, kerosene
weight 1,1 kg

Automatic nozzle for AdBlue SB325

technopolymer, stainl.steel end piece integ. flow
technopolymer, stainl.steel end piece integ. flow

Art. Nr. P61701

for commercial vehicle fuelling
integr. flow meter
Display: 5-digit partial. Total
Max. flowrate 45 l/min
Connection ¾" Tülle
Break-Away-System
weight 1,1 kg

Fuel nozzle for oils with digital counter K400 fle

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131801

Min. flowrate 1 l/min
Max. flowrate 1-30 l/min
max. Viscosity 2000 cSt
Max. operating pressure 70 bar
Connection ½" ft
Meter body in aluminium
With automatic no drip valve
Including 2 batteries AAA 1,5 V
weight 1,5 kg

Fuel nozzle for oils with digital counter K400 rig

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131802

Min. flowrate 1 l/min
Max. flowrate 30 l/min
max. Viscosity 2000 cSt
Max. operating pressure 70 bar
Connection ½" ft
5 figure partial display, 7 figure total
Partial display resettable
Housing made of aluminum
With automatic no drip valve
Including 2 batteries 1,5 V AAA
weight 1,4 kg

Fuel nozzle for oils with mechanical counter K40 f

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131819

Min. flowrate 1 l/min
Max. flowrate 30 l/min
max. Viscosity 2000 cSt
Max. operating pressure 70 bar
Connection ½" ft
Flow meter: 6 digit total / 4-digit partial resettable
weight 1,7 kg

Fuel nozzle for oils with mechanical counter K40 r

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131818

Min. flowrate 1 l/min
Max. flowrate 30 l/min
Max. operating pressure 70 bar
max. Viscosity 2000 cSt
Connection ½" ft
Meter: 6 digit total / 4 digit partial
Resettable partial quantity
weight 1,6 kg

Nozzle Automatic f. Urea (AUS32/AdBlue)

stainless steel , w. swivel , Max. flowrate 40 l/m
stainless steel , w. swivel , Max. flowrate 40 l/m

Art. Nr. 131109ZU

Connection ¾” Hose fitting
Max. operating pressure 3,4 bar
weight 2,00 kg

Optional:
Adapter kit 131109ZU-SET for mounting to a dispensing kit3 PRO

Nozzle Plastic manual 80 for Water/Diesel

Max. flowrate 80 l/min
Max. flowrate 80 l/min

Art. Nr. 131041

Material plastic
Connection 1" ft
Fluids: Biodiesel, Diesel, Oil, Water
Spout diameter: 34 mm
weight 0,3 kg

Nozzle autom. for urea dispenser (AUS 32, AdBlue)

technopolymer, with stainless steel end piece
technopolymer, with stainless steel end piece

Art. Nr. P61751

for commercial vehicle fuelling
Max. flowrate 35 l/min
Connection ¾" spout
Break-Away-System
weight 0,7 kg

Nozzle automatic 80 for Diesel

Max. flowrate 90 l/min
Max. flowrate 90 l/min

Art. Nr. 131069

Connection 1" ft
With swivel
Spout diameter: 29 mm
weight 1,8 kg

Nozzle automatic A120 f. Diesel, w. type approval

Max. flowrate 120 l/min
Max. flowrate 120 l/min

Art. Nr. 131070GN

Connection 1" ft
With swivel
With type approval EN 13012
Spout diameter: 29 mm
weight 1,9 kg

Nozzle automatic for urea (AUS 32, AdBlue) SB325

technopolymer, with stainless steel end piece
technopolymer, with stainless steel end piece

Art. Nr. P61700

for commercial vehicle fuelling
Max. flowrate 45 l/min
Connection ¾" spout
Break-Away-System
weight 0,8 kg

Nozzle automatic for urea (AUS32,AdBlue) SB325 CAR

technopolymer, with stainless steel end piece, w/m
technopolymer, with stainless steel end piece, w/m

Art. Nr. P61722

for car and commercial vehicle refuelling
with integr. flow meter K24
Flow regulation in 3 steps
Flow rate 5-27 l/min
with swivel
Connection ¾" spout
Break-Away-System
Spout diameter: 19 mm
Max. operating pressure 3 bar
weight 0,9 kg

Nozzle automatic for urea (AUS32,AdBlue) SB325 CAR

technopolymer, with stainless steel end piece
technopolymer, with stainless steel end piece

Art. Nr. P61721

for car and commercial vehicle refueling
Flow regulation in 3 steps
Flow rate 5-27 l/min
with swivel
Connection ¾" spout
Break-Away-System
Spout diameter: 19 mm
Max. operating pressure 3 bar
weight 0,7 kg

Nozzle for oils PISTOL-ONE, flexible

Max. flowrate 60 l/min
Max. flowrate 60 l/min

Art. Nr. P64002

Connection ¾“ ft
Max. operating pressure 100 bar
aluminum body
With semi-automatic no-drip valve
weight 1,8 kg

Nozzle for oils PISTOL-ONE, rigid

Max. flowrate 60 l/min
Max. flowrate 60 l/min

Art. Nr. P64001

Connection ¾“ ft
Max. operating pressure 100 bar
Aluminum housing
With semi-automatic no-drip valve
weight 1,7 kg

Nozzle for oils with NEXT/2 digital counter, flexi

Flow range 6-60 l/min
Flow range 6-60 l/min

Art. Nr. P97402

Connection ¾“ ft
Min. flowrate 6 l/min
Max. flowrate 60 l/min
Max. operating pressure 70 bar
With half automatic no drip valve
Digital Flow meter: 5 digit partial. Total.
Inlet swivel coupling with filter for impurities
Indluding batteries AAA no. 2, 2 x 1,5 V
weight 2,6 kg

Nozzle for oils with NEXT/2 digital counter, rigid

Flow range 6-60 l/min
Flow range 6-60 l/min

Art. Nr. P97401

Connection ¾“ ft
Min. flowrate 6 l/min
Max. flowrate 60 l/min
Max. operating pressure 70 bar
With half automatic no drip valve
Flow meter: 5 digit partial. Total
Inlet swivel coupling with filter for impurities
Including batteries AAA no.2, 2 x 1,5 V
weight 2,5 kg

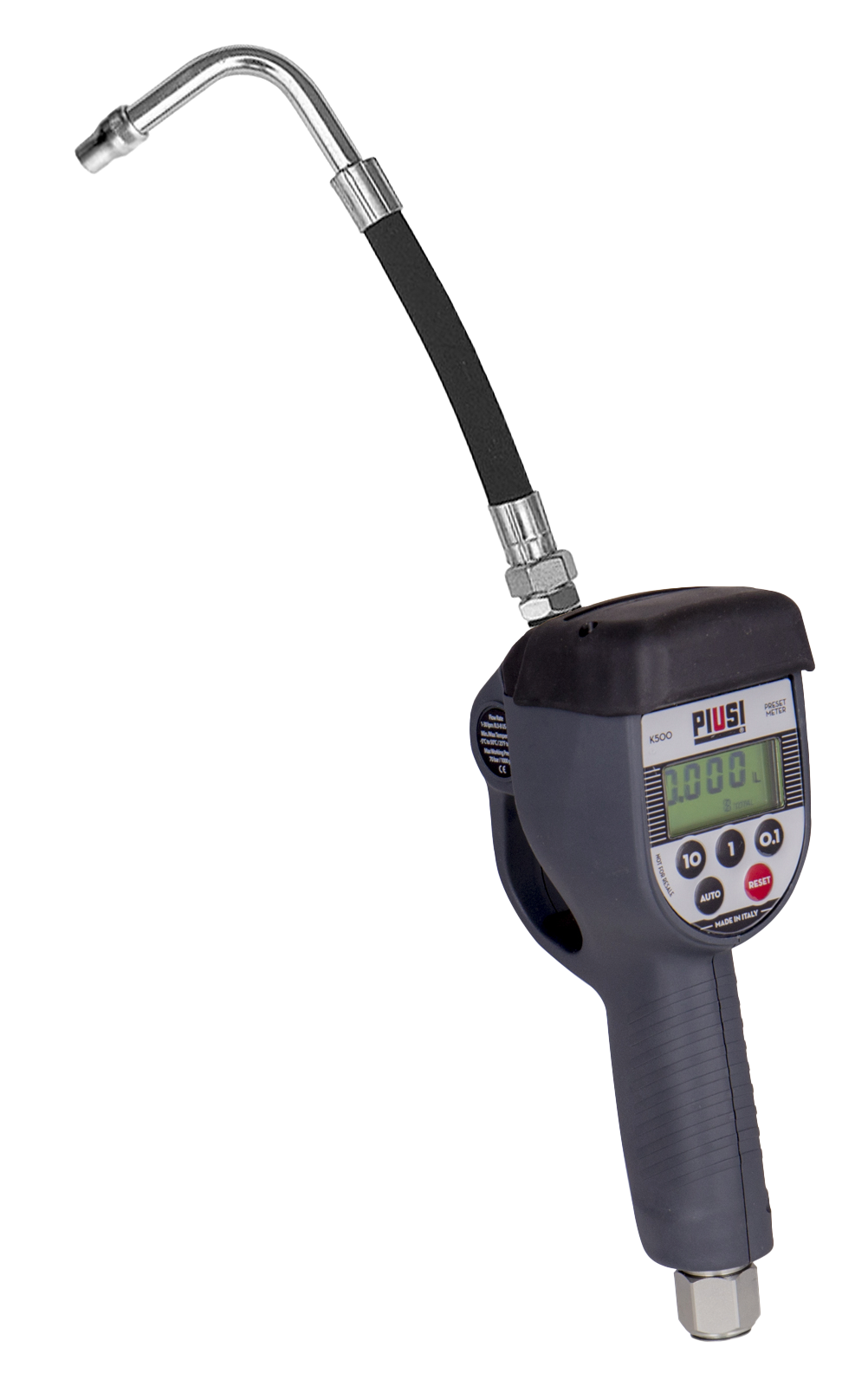

Nozzle for oils with digital counter K500, preset.

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131807

max. Viscosity 2000 cSt
Min. flowrate 1 l/min
Max. flowrate 30 l/min
Max. operating pressure 70 bar
Connection ½" ft
Min. presettable quantity 0,1 l, max. 99,9 l
With automatic no drip valve
Inc. 4 batteries 1,5V size AA
weight 1,8 kg

Nozzle for oils, flexible

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131804

Min. flowrate 1 l/min
Max. flowrate 1-30 l/min
Max. operating pressure 70 bar
Connection ½" ft
Material Aluminium body and plastic handle
weight 0,9 kg

Nozzle for oils, rigid

Flow range 1-30 l/min
Flow range 1-30 l/min

Art. Nr. 131803

Min. flowrate 1 l/min
Max. flowrate 30 l/min
Max. operating pressure 70 bar
Connection ½" ft
Material aluminium body with plastic handle
weight 0,8 kg

Nozzle manual 120 BIO for Diesel

Max. flowrate 120 l/min
Max. flowrate 120 l/min

Art. Nr. P641B00

Connection 1" ft
With swivel
Fluids: Diesel, Bio Diesel
Spout diameter: 20 mm
weight 0,7 kg

Nozzle manual 120 for Diesel

Max. flowrate 120 l/min
Max. flowrate 120 l/min

Art. Nr. 131016

Connection 1" ft
With swivel
Fluids: Diesel, Biodiesel, Oil
Spout diameter: 25 mm
weight 0,7 kg

Nozzle manual 150 for Diesel

Max. flowrate 150 l/min
Max. flowrate 150 l/min

Art. Nr. 131080

Fluids: Diesel, Biodiesel, Gasoline
Connection 1" ft
With swivel
Spout diameter: 25 mm
weight 0,6 kg

Nozzle manual for urea (AUS 32, AdBlue)

plastic , Max. flowrate 80 l/min
plastic , Max. flowrate 80 l/min

Art. Nr. 131120

Connection ¾" spout
Stainless steel spout
weight 0,3 kg
