Refueling kits for dieselFor alternating current (AC) and direct current (DC)

ZUWA refueling kits...

... are complete refueling units based on a robust, powerful electric pump. The pumps are dry self-priming and available for various power supplies.

Refueling kits for alternating current

ZUWA refueling kits for alternating current are a suitable solution for various applications. Ready to plug in, durable, powerful! Whether for stationary or mobile use, there is something suitable for almost all applications.

Refueling kits for alternating current

On a plate

Refueling kits on plate

The refueling sets on a plate are ready-to-install units and can be easily mounted on the wall or directly on some tank models. They are available with or without a meter.

Features:

  • Pump with on/off switch and cable with plug
  • Models E 56 and E 72 with lift protection device
  • Optionally with mechanical meter K33 (other meters on request)
  • Automatic nozzle (with type approval on request)
  • Filling hose 4 m oil-resistant/permanently elastic, ¾" or 1" (other lengths and hose reels on request)
  • Suction set 1.5 m oil-resistant spiral hose with foot valve
  • Holder for fuel nozzle

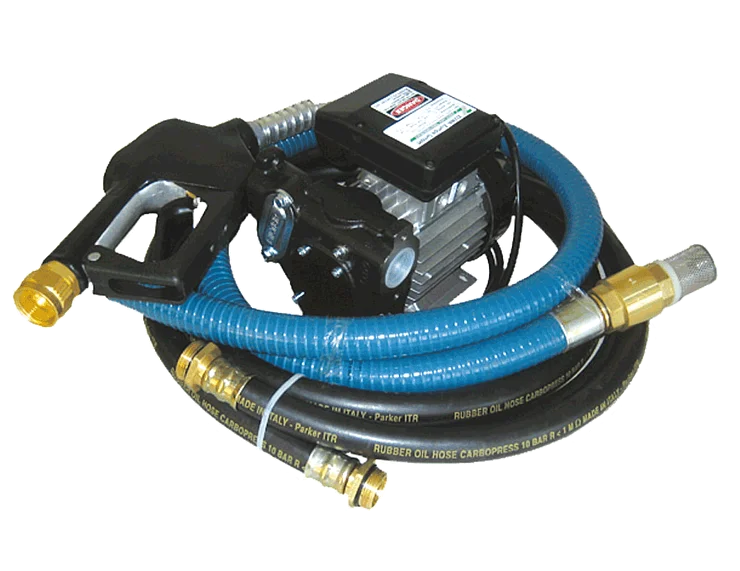

Mobile unit

The mobile refueling kits

The mobile refueling kits for alternating current are complete units for decanting and refueling, optionally also available with a meter and/or transport and storage box.

Features:

  • Pump with on/off switch and cable with plug (carrying frame optional)
  • 1.5 m oil-resistant spiral hose with foot valve
  • 4 m oil-resistant, permanently elastic filling hose
  • Automatically shutting off fuel nozzle

Other hose lengths, counters, and transport boxes available on request.

Refueling kits for direct current

The DC refueling kits are particularly suitable for transferring and refueling via the on-board power supply of vehicles and machines and are independent of an AC power supply.


Refueling kits for alternating current

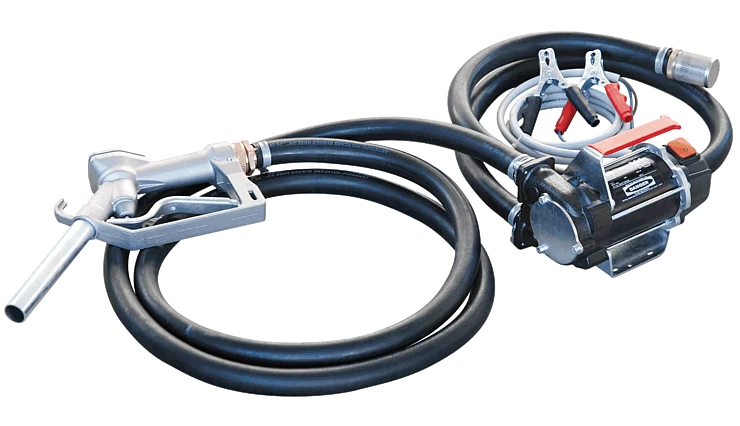

Battery set

Battery Set

The battery set is a complete refueling/transfer unit. No additional components are required. Thanks to its compact design, this small pump unit fits easily into the vehicle and is immediately ready for use and powerful.

Features:

  • Self-priming DC pump with on/off switch and carrying handle
  • 2 m connection cable with battery terminals
  • Manual fuel nozzle (optional automatic shut-off)
  • 4 m oil-resistant, permanently elastic rubber hose NW 19 with professional connection for suction and pressure side
  • Suction basket
  • Optional with transport box (item no. 200855)

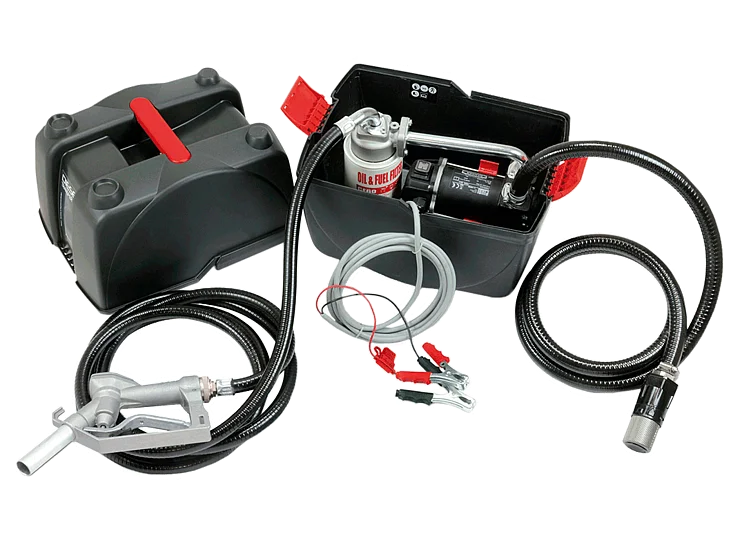

Refueling box

Refueling box 3000 BASIC | PRO

This refueling kit is also ready for immediate use and offers high delivery rates and a long service life. Everything can be quickly stowed away in the box, protecting it from dirt and dust. Annoying oil odors are virtually eliminated. This is the perfect solution, especially when storage in the vehicle interior is required.

Features:

  • Self-priming DC pump with on/off switch
  • Special box with lid for storage
  • 2 m connection cable with battery clamps
  • Manual fuel nozzle
  • Oil-resistant, permanently elastic rubber hose with professional connection
    (Pro: 6 m / Basic: 4 m)
  • Lockable foot valve
  • Diesel filter 10 µm (Pro only)
flow rate max. litres
10
85
10 85
max. pressure
0
4
0 4
Voltage (AC)
Voltage (DC)

Batterie Kit EXGO! 12V ATEX with switch

with fuel pump, nozzle and hose
with fuel pump, nozzle and hose

Art. Nr. P225X00

Pump for Gasoline, Kerosene, Diesel
flow rate max. litres 32 l/min
flow rate max. m³ 1,92 m³/h
max. pressure 1,2 bar
Inlet/outlet 3/4" ft
Material pump housing cast iron
Built in by-pass valve

Electric motor
Voltage (DC) 12 V
Nominal power 0,084 kW, Rated current (DC) 10 A
rotation max. 1400 min-1
Motor protection (thermal) yes
Operating mode S1 continuous duty Anti-noise filter (electromagnetic compatibility EMC)
5 m cable with battery clamps
Switch ON/OFF
ATEX II 2 G Ex d IIA T4 Gb

Equipment/Accessories :
- manual nozzle
- 2,5 m filling hose ¾“
- 1,5 m suction hose ¾“
- Fittings, Filter Mesh, PTFE-Tape
- Ground clamp

frame size 280 x 160 x 140 mm
weight 9 kg

Battery Kit Panther DC 12 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 120705

Self Priming Vane Pump
flow rate max. litres 56 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
by-pass valve / 100µ filter
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,3 kW, Rated current (DC) 35 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
Protection class IP55
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“, NW 19
professionally crimped and suction filter

Packaging 300x300x180 mm
weight 10,5 kg

Battery Kit Panther DC 12/24 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 120706

Self Priming Vane Pump
flow rate max. litres 35/70 l/min
flow rate max. m³ 2,1/4,2 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
by-pass valve / 100µ filter
Material pump housing cast iron

Electric motor
Voltage (DC) 12/24 V
Nominal power 0,15/0,42 kW, Rated current (DC) 16/25 A
rotation max. 1800/3500 min-1, Max. duty cycle 30 min.
Protection class IP55
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“, NW19
professionally crimped and suction filter

Packaging 300x300x180 mm
weight 10,5 kg

Battery-Kit E 3000 BIO , 12 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. P225B00

Self Priming Vane Pump E 3000 BIO
flow rate max. litres 50 l/min
flow rate max. m³ 3,0 m³/h
max. pressure 1,5 bar
Inlet/outlet ¾“ ft
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,22 kW, Rated current (DC) 22 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle SELF 2000 BIO
- 4 m oil resistant rubber hose ¾“, NW19
professionally crimped with suction filter

Packaging 300x300x180 mm
weight 6,5 kg

Battery-Kit VISCOMAT 60/2, 12 V

with pump, nozzle and hose
with pump, nozzle and hose

Art. Nr. P309060

Self Priming Gear Pump VISCOMAT 60/2
flow rate max. litres 10 l/min
flow rate max. m³ 0,6 m³/h
max. pressure 4 bar
Inlet/outlet ¾“ ft
For oil with max. viscosity 600 cSt.
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,30 kW, Rated current (DC) 22 A
rotation max. 2900 min-1
Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle SELF3000
- 4 m oil resistant rubber hose ¾“, NW19
with suction filter

Packaging 300x300x180 mm
weight 8 kg

Battery-Kit VISCOMAT 60/2, 24 V

with pump, nozzle and hose
with pump, nozzle and hose

Art. Nr. P310070

Self Priming Gear Pump VISCOMAT 60/2
flow rate max. litres 10 l/min
flow rate max. m³ 0,6 m³/h
max. pressure 4 bar
Inlet/outlet ¾“ ft
For oil with max. viscosity 600 cSt.
Material pump housing cast iron

Electric motor
Voltage (DC) 24 V
Nominal power 0,30 kW, Rated current (DC) 18 A
rotation max. 2900 min-1
Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle SELF3000
- 4 m oil resistant rubber hose ¾“, NW19
with suction filter

Packaging 300x300x180 mm
weight 9,5 kg

Battery-kit BY-PASS E 3000 , 12 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 1206313

Self Priming Vane Pump
flow rate max. litres 50 l/min
flow rate max. m³ 3,0 m³/h
max. pressure 1,5 bar
Inlet/outlet ¾“ ft
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,2 kW, Rated current (DC) 22 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“, NW19
professionally crimped with suction filter

Packaging 300x300x180 mm
weight 7,8 kg

Battery-kit BY-PASS E3000 , 24 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 1206323

Self Priming Vane Pump
flow rate max. litres 50 l/min
flow rate max. m³ 3 m³/h
max. pressure 1,5 bar
Inlet/outlet ¾“ ft
Material pump housing cast iron

Electric motor
Voltage (DC) 24 V
Nominal power 0,3 kW, Rated current (DC) 13 A
rotation max. 2900 min-1, Duty cycle max. 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“, NW19
professionally crimped and suction filter

Packaging 300x300x180 mm
weight 7,1 kg

Battery-kit BY-PASS E3000 Inline , 12 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 1206313N

Self Priming Vane Pump
flow rate max. litres 50 l/min
flow rate max. m³ 3,0 m³/h
max. pressure 1,5 bar
Inlet/outlet ¾“ ft
Material pump housing cast iron

Electric motor
Nominal power 0,22 kW, Rated current (DC) 22 A
rotation max. 2900 min-1, Duty cycle max. 30 min.
2 m battery cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“, NW 19
professinally crimped and with suction filter

Packaging 300x300x180 mm
weight 7 kg

Battery-kit BY-PASS E3000 Inline , 24 V

with Diesel pump, nozzle and hose
with Diesel pump, nozzle and hose

Art. Nr. 1206323N

Self Priming Vane Pump
flow rate max. litres 50 l/min
flow rate max. m³ 3,0 m³/h
max. pressure 1,5 bar
Inlet/outlet ¾“ ft
Material pump housing cast iron

Electric motor
Voltage (DC) 24 V
Nominal power 0,3 kW, Rated current (DC) 13 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil restiant rubber hose ¾“, NW 19
professionally crimped and suction filter

Packaging 300x300x180 mm
weight 6,7 kg

Dispensing kit E 120-BS/Z filter, meter K33, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. P39560ZU

Self Priming Vane Pump E 120
flow rate max. m³ 5,1 m³/h
flow rate max. litres 85 l/min
max. pressure 1,5 bar
Integrated by-pass valve
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,75 kW, Rated current (AC) 5,7 A
rotation max. 1450 min-1

Equipment/Accessories :
- Water captor (filter head with cartridge)
- Mechanical flow meter K33
- Automatic nozzle typr 120
- 1,5 m suction hose 1" with foot valve
- 6 m discharge hose 1"
- mounted in plate to hang it on tank

Packaging 545x435x340 mm
weight 32 kg

Dispensing kit E 56-BS, without meter, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. 120715

Self Priming Vane Pump Panther 56
flow rate max. litres 56 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
With by-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,35 kW, Rated current (AC) 3 A
rotation max. 2900 min-1

Equipment/Accessories ;
- Autom. nozzle type A 60
- Nozzle holder
- Anti shiphon valve
- 1,5 m oil resistant spiral hose 1" with foot valve
- 4 m oil resistant rubber discharge hose 3/4", connection 1"
- Mounted on plate 350 x 350 mm

weight 15 kg

Dispensing kit E 56-BS, without meter, 230V

for Diesel/Biodiesel, with suction hose
for Diesel/Biodiesel, with suction hose

Art. Nr. 120711

Self Priming Vane Pump Panther 56
flow rate max. litres 56 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
With by-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,35 kW, Rated current (AC) 3 A
rotation max. 2900 min-1

Equipment/Accessories ;
- Automatic nozzle type A 60
- Anti shipton valve
- 1,5 m oil resistant spiral suction hose 1" with foot valve
- 4 m oil resistant rubber discharge hose 3/4", connection 1"

weight 13 kg

Dispensing kit E 56-BS/Z filter, meter K33, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. P38660ZU

Self Priming Vane Pump Panther 56
flow rate max. litres 52 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
By-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,35 kW, Rated current (AC) 3 A
rotation max. 2900 min-1

Equipment/Accessories :
- Water captor
- Mechanical flow meter K33
- Automatic nozzle 60
- Nozzle holder
- 1,5 m suction hose ¾“ with foot valve
- 6 m discharge hose
- Mounted on plate for wall fastening

Packing dimension 580 x 380 x 320 mm
weight 21 kg

Dispensing kit E 56-BS/Z, meter K33, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. 120713

Self Priming Vane Pump Panther 56
flow rate max. litres 56 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,5 bar
Inlet/outlet 1" ft
With by-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,35 kW, Rated current (AC) 3 A
rotation max. 2900 min-1

Equipment/Accessories :
- Automatic nozzle A 60
- Nozzle holder
- Mechanical flow meter K33
- Anti siphon valve
- 1,5 m oil resistant spiral suction hose 1" with foot valve
- 4 m oil resistant rubber discharge hose 3/4", fitting 1"

weight 17 kg

Dispensing kit E 72-BS/Z filter, meter K33, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. P26540ZU

Self Priming Vane Pump Panther 72
flow rate max. litres 70 l/min
flow rate max. m³ 4,2 m³/h
max. pressure 2 bar
Inlet/outlet 1" ft
By-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,5 kW, Rated current (AC) 4,2 A
rotation max. 2900 min-1

Equipment/Accessories :
- Water captor
- Mechanical flow meter K33
- Automatic nozzle 60
- Nozzle holder
- 1,5 m suction hose 1“ with foot valve
- 6 m discharge hose, connectors 1"
- Mounted on plate for wall fastening

Packing dimension 580 x 380 x 320 mm
weight 20 kg

Dispensing kit E 72-BS/Z, meter K33, 230V

for Diesel/Biodiesel, on plate, with suction hose
for Diesel/Biodiesel, on plate, with suction hose

Art. Nr. 120639

Self Priming Vane Pump Panther 72
flow rate max. litres 72 l/min
flow rate max. m³ 4,32 m³/h
max. pressure 2 bar
Inlet/outlet 1" ft flange
By-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,5 kW, Rated current (AC) 4,2 A
rotation max. 2900 min-1

Equipment/Accessories :
- Automatic nozzle type A 60
- Nozzle holder
- Mechanical flow meter K33
- Anti siphon valve
- 1,5 m oil resistant spiral hose 1" with foot valve
- 4 m oil resistant rubber discharge hose 1", conn. 1"
- Mounted in plate 350 x 350 mm

weight 19 kg

Dispensing kit E 72-BS/Z, without meter, 230V

for Diesel/Biodiesel, with suction hose
for Diesel/Biodiesel, with suction hose

Art. Nr. 120659

Self Priming Vane Pump Panther 72
flow rate max. litres 72 l/min
flow rate max. m³ 4,32 m³/h
max. pressure 2 bar
Inlet/outlet 1" ft flange
By-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,5 kW, Rated current (AC) 4,2 A
rotation max. 2900 min-1

Equipment/Accessories :
- Automatic nozzle type A 60
- Anti siphon valve
- 1,5 m oil resistant spiral hose 1" with foot valve
- 4 m oil resistant rubber discharge hose 1"

weight 15 kg

Dispensing kit EX 50-BS/Z, meter K33 ATEX, 230V

for Diesel/Petrol/Kerosene,on plate,w/o suct. hose
for Diesel/Petrol/Kerosene,on plate,w/o suct. hose

Art. Nr. P37700

Transfer Station for Petrol, Kerosene and Diesel
for non-commercial use

Vane Pump EX 50
flow rate max. litres 50 l/min
flow rate max. m³ 3 m³/h
max. pressure 0,6 bar
Inlet/outlet 1" ft flange
Material pump housing cast iron
Integrated bypass valve

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,25 kW, Rated current (AC) 1 A
rotation max. 2700 min-1
Motor protection (thermal) yes
Operating mode Max. duty cycle on/off 30/30
ATEX II2GExdIIAT4Gb

Equipment/Accessories :
Automat. Nozzle ATEX art. no. P61302
Mech. Flow Meter K33 ATEX
Mesh strainer on suction line
Anti-noise filter (eletromagnetic compatibility - EMC
Gasoline Hose 3/4" Lenght 4 m, connection 1" mt x 1" mt
mounted on plate

Packing dimension 600 x 400 x 290 mm
weight 16,5 kg

Dispensing kit Panther EX 56-BS/Z/F, K33, ATEX, 23

for Diesel/Petrol/Kerosene,HVO/XTL, on plate
for Diesel/Petrol/Kerosene,HVO/XTL, on plate

Art. Nr. P58400

Transfer Station for Petrol, Kerosene and Diesel
for non-commercial use

Vane Pump EX 50
flow rate max. litres 56 l/min
flow rate max. m³ 3,36 m³/h
max. pressure 1,8 bar
Inlet/outlet 1" ft flange
Material pump housing cast iron
Integrated bypass valve

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,23 kW, Rated current (AC) 1 A
rotation max. 2800 min-1
Motor protection (thermal) yes
Operating mode Max. duty cycle on/off 30/30
ATEX II2GExdIIAT4Gb

Equipment/Accessories :
Automat. Nozzle ATEX art. no. P61302
Mech. Flow Meter K33 ATEX
Mesh strainer on suction line
Anti-noise filter (eletromagnetic compatibility - EMC
Gasoline Hose 3/4" Lenght 4 m, connection 1" mt x 1" mt
mounted on plate

Packing dimension 600 x 400 x 290 mm
weight 22 kg

Fueling Box E 3000 BASIC, 12 V

Diesel dispensing kit with nozzle and hose
Diesel dispensing kit with nozzle and hose

Art. Nr. P23100

Self Priming Vane Pump E 3000
flow rate max. litres 45 l/min
flow rate max. m³ 2,7 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4" spout
by-pass valve
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,3 kW, Rated current (DC) 24 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- stable and portable transport box
- Manual nozzle
- 4 m oil resistant rubber hose ¾“ NW19
professionally crimbed, with lockable foot valve

Packaging 400x300x420 mm
weight 9 kg

Fueling Box E 3000 BASIC, 24 V

Dispensing kit in a stable transport box
Dispensing kit in a stable transport box

Art. Nr. P23200

Self Priming Vane Pump BP 3000
flow rate max. litres 45 l/min
flow rate max. m³ 2,7 m³/h
max. pressure 1,5 bar
Max. fluid temperature 60 °C
Inlet/outlet 3/4" spout
Material pump housing cast iron

Electric motor
Voltage (DC) 24 V
Nominal power 0,3 kW, Rated current (DC) 13 A
rotation max. 2900 min-1
Max. duty cycle 30 min. , Switch ON/OFF
With cable and clamps
weight 9 kg

Equipment/Accessories :
- Manual nozzle
- 4 m discharge hose ¾
- lockable foot valve

Fueling Box E 3000 PRO, 12 V

Diesel dispensing kit with nozzle and hose
Diesel dispensing kit with nozzle and hose

Art. Nr. P23101

Self Priming Vane Pump E 3000
flow rate max. litres 43 l/min
flow rate max. m³ 2,58 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4" spout
by-pass valve
Material pump housing cast iron

Electric motor
Voltage (DC) 12 V
Nominal power 0,3 kW, Rated current (DC) 24 A
rotation max. 2900 min-1, Max. duty cycle 30 min.
Protection class IP55
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Manual nozzle
- 4 m oil resistant rubber hose ¾“ NW 19
professionally crimped with lockable foot valve
- Filter 10µm
- One pair of cloves

Packaging 400x300x420 mm
weight 11 kg

Fueling Box E 3000 PRO, 24 V

Diesel dispensing kit with nozzle and hose
Diesel dispensing kit with nozzle and hose

Art. Nr. P23201

Self Priming Vane Pump E 3000
flow rate max. litres 43 l/min
flow rate max. m³ 2,58 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4" spout, vertically
by-pass valve
Material pump housing cast iron

Electric motor
Voltage (DC) 24 V
Nominal power 0,3 kW, Rated current (DC) 13 A
2900 min-1, Max. duty cycle 30 min.
2 m cable with clamps , Switch ON/OFF

Equipment/Accessories :
- Stable and portable transport box
- Manual nozzle
- 4 m oil resistant rubber hose ¾“ NW19
professionally crimbed with lockable foot valvel
- Diesel filter 10µm with cartridge
- Pair of cloves

Packaging 400x300x420 mm
weight 12 kg

ST E120 BO Fuel transfer kit for Diesel , 230 V

with flow meter, nozzle, filter, mounted on plate
with flow meter, nozzle, filter, mounted on plate

Art. Nr. P395B00

Self Priming Vane Pump E 120 BIO
flow rate max. m³ 5,1 m³/h
flow rate max. litres 85 l/min
max. pressure 1,5 bar
Integrated by-pass valve
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 1,15 kW, Rated current (AC) 5,7 A
rotation max. 1450 min-1

Equipment/Accessories :
- Bio Diesel filter
- Mechanical flow meter K150 BIO
- Automatic nozzle typr 120 BIO
- 6 m discharge hose 1"
- mounted in plate to hang it on tank

Packaging 560x450x370 mm
weight 28 kg

ST Panther 72 BIO Dispenser Kit for Diesel, 230 V

with meter, nozzle and filter, mounted on plate
with meter, nozzle and filter, mounted on plate

Art. Nr. P265B00

Self Priming Vane Pump Panther 72 BIO
flow rate max. litres 70 l/min
flow rate max. m³ 4,2 m³/h
max. pressure 2 bar
Inlet/outlet 1" ft flange
By-pass valve and filter
Material pump housing cast iron

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,5 kW, Rated current (AC) 4,2 A
rotation max. 2900 min-1

Equipment/Accessories :
- Mechanical flow meter K33 BIO
- Automatic nozzle A70 BIO
- Nozzle holder
- Bio Diesel filter
- 6 m discharge hose 3/4"
- Mounted in plate to hang it onto tank

Packing dimension 580 x 400 x 340 mm
weight 19 kg
