Fueling systemsFor commercial vehicles with AdBlue® (AUS 31, urea)

FUELING SET 3

BASIC | PRO | PRO FILTER REFUELING SET DRUM

Ideally suited for IBCs and 200-liter drums.

  • Powerful dry self-priming diaphragm pump
  • Digital meter K24 (PRO and PRO FILTER)
  • Suction hose with quick coupling (BASIC, PRO, and PRO FILTER)
  • 6 m discharge hose
  • Automatic nozzle (BASIC PLUS, PRO, and PRO FILTER) or manual nozzle (BASIC and DRUM)
  • Nozzle holder with drip tray
  • Suction pipe and AF2 connection (DRUM)


ZUWA's refueling kits for AdBlue® are the first choice, especially for companies with commercial vehicles or agricultural vehicles with SCR catalytic converters.

Our refueling kits not only reduce the hassle of having to refuel with AdBlue® at a gas station, they also reduce the risk of contaminating vehicles when refilling from canisters or damaging them with dried, spilled AdBlue®. Added to this are the cost savings when purchasing AdBlue® in large quantities, for example in barrels or IBC containers.

Basic PLUS (Art-Nr. 81618)
Baisc (Art.-Nr. 81615)

Overview of our refueling systems for commercial vehicles

Refueling kitDRUMDRUM PLUSBASICBASIC PLUSBASIC KS325PROPROPRO FILTER
Manual plastic fuel nozzle✅–✅–––––
Automatic stainless steel fuel nozzle–✅–✅–✅––
Automatic plastic fuel nozzle––––✅–✅✅
Counter–––––K24K24K24
Filter–––––––✅
Item no.8160681606AZZU816158161881618KS3258161481614KS32581620KS325
FLIPPER refueling set for urea (AUS 32, AdBlue®, item no. 81611)kWVA
Motor0,42301,95
Max. flow rate3,5-10 l/min
Max. delivery pressure1,9 bar
Speed1450 rpm
flow rate max. litres
3
35
3 35
max. pressure
1
2
1 2
Voltage (AC)

Dispensing kit 3 BASIC PLUS KS325 f.urea (AdBlue)

diaphragm pump / autom.nozzle KS325
diaphragm pump / autom.nozzle KS325

Art. Nr. 81618KS325

Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4"
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
Max. duty cycle 20 min.
Switch ON/OFF
2 m cable with plug

Equipment/Accessories :
- Autom. stainl.steel nozzle KS325
- 6 m filling hose ¾“
- 1,5 m suction hose ¾“ with SEC quick coupling
On stainless steel plate for lateral mounting to IBC

Packing dimension 480 x 370 x 265 mm
weight 14 kg

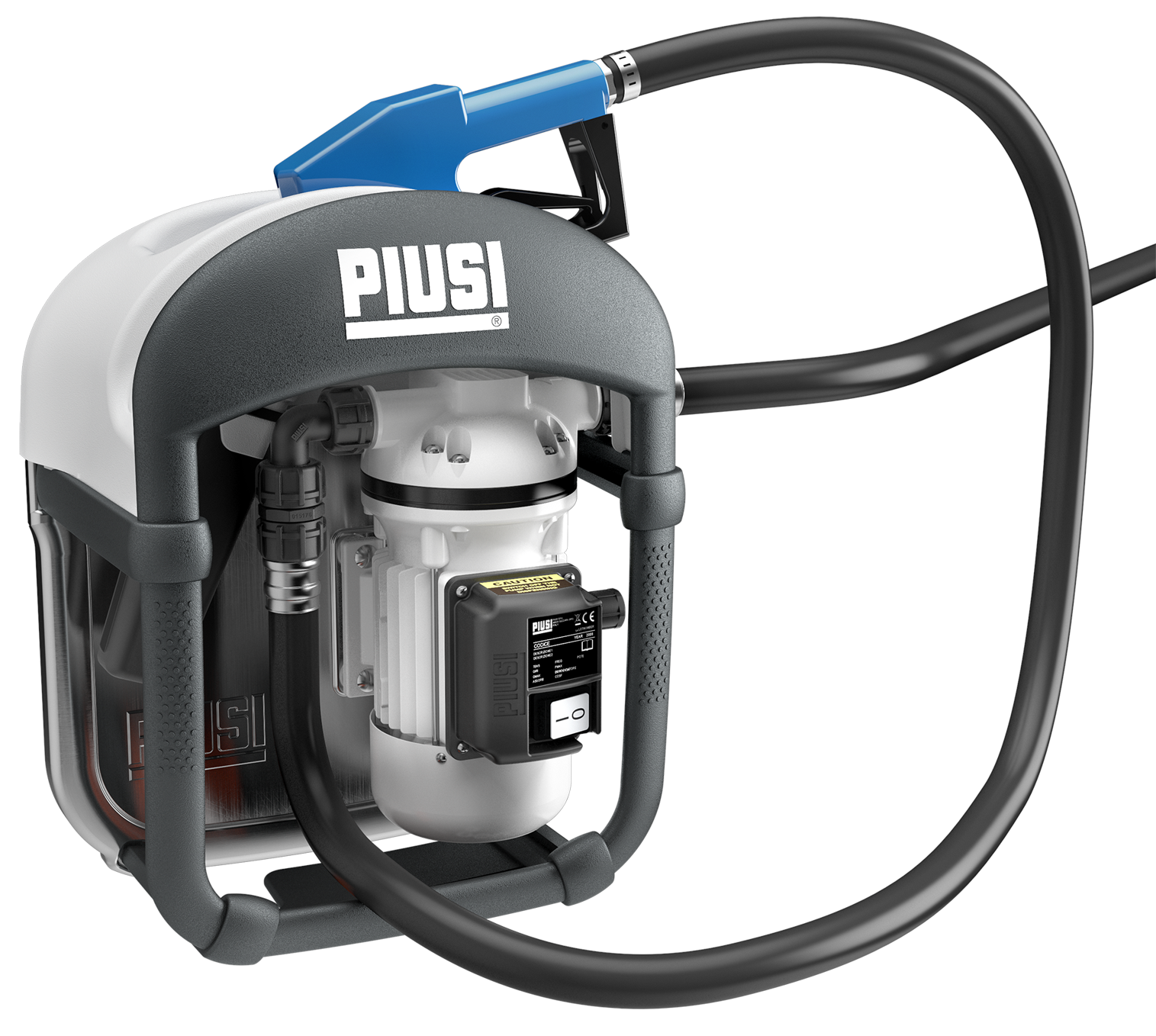

Dispensing kit 3 BASIC PLUS f. urea (AUS32AdBlue)

diaphragm pump / autom. stainl. steel nozzle
diaphragm pump / autom. stainl. steel nozzle

Art. Nr. 81618

Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4"
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
Max. duty cycle 20 min.
Switch ON/OFF
2 m cable with plug

Equipment/Accessories :
- Autom. stainl. steel nozzle A60
- 6 m filling hose ¾“
- 1,5 m suction hose ¾“ with SEC quick coupling
On stainless steel plate for lateral mounting to IBC

Packing dimonsion 480 x 370 x 265 mm
weight 14 kg

Dispensing kit 3 BASIC for AdBlue

with selfpriming diaphragm pump
with selfpriming diaphragm pump

Art. Nr. 81615

Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4"
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
Max. duty cycle 20 Min.
Switch ON/OFF , 2 m cable with plug

Equipment/Accessories ;
- Manual nozzle for AdBlue with nozzle holder
- 1,5 m suction hose ¾“ with SEC quick coupling
- 6 m filling hose ¾“
- On stainless steel plate for lateral mounting to IBC

Packaging 490 x 300 x 310 mm
weight 13 kg

Dispensing kit 3 PRO FILTER f.Urea (AUS 32/AdBlue)

3D-Filter, autom.nozzle SB325, flowmeter K24
3D-Filter, autom.nozzle SB325, flowmeter K24

Art. Nr. 81620KS325

Self Priming Diaphragm Pump
flow rate max. litres 34 l/min
flow rate max. m³ 20,4 m³/h
max. pressure 1,6 bar
Inlet/outlet 3/4"
Material pump housing plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
max. duty cycle 20 min.
Switch ON/OFF

Equipment/Accessories :
- Automatic nozzle SB325
with stainless steel spout and Break-Away-System
- Digital flow meter K24
- Discharge hose ¾“, length 6 m with hose holder
- 1,5 m suction hose with SEC connector
- Sturdy stainless steel plate for lateral mounting on IBC
- 3D-Filter for AdBlue

Packing diemensions 480 x 390 x 310 mm
weight 14 kg

Dispensing kit 3 PRO for AdBlue

with diaphragm pump, stainl.steel nozzle,meter K24
with diaphragm pump, stainl.steel nozzle,meter K24

Art. Nr. 81614

Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4"
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
Max. duty cycle 20 min.
Switch ON/OFF , 2 m cable with plug

Equipment/Accessories :
- Digital flow meter K24
- Automatic stainless steel nozzle A60
- Nozzle holder with drip collector
- 6 m filling hose ¾“
- 1,5 m suction hose ¾“ with SEC quick coupling
- On stainless steel plate for lateral mounting on
IBC-Tank

Packing dimension 480 x 370 x 265 mm
weight 14 kg

Dispensing kit 3 PRO for AdBlue

with diaphragm pump, nozzle SB325, meter K24
with diaphragm pump, nozzle SB325, meter K24

Art. Nr. 81614KS325

Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,5 bar
Inlet/outlet 3/4"
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
Max. duty cycle 20 min.
Switch ON/OFF , 2 m cable with plug

Equipment/Accessories :
- Digital flow meter K24
- Automatic nozzle SB325
- Nozzle holder
- 6 m filling hose ¾“
- 1,5 m suction hose ¾“ with SEC quick coupling
- On stainless steel plate for lateral mountin on
IBC tank

Packing dimension 490 x 300 x 310 mm
weight 13 kg

FLIPPER für Harnstoff (AUS 32, AdBlue) , 230 V

Mobile filling station for all types of vehicles
Mobile filling station for all types of vehicles

Art. Nr. 81611

Selbstansaugende Membranpumpe für AdBlue
flow rate max. litres 3,5-10 l/min
flow rate max. m³ 0,21-0,60 m³/h
max. pressure 1,9 bar
Inlet/outlet 3/4" aG
Material pump housing Kunststoff

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (DC) 1,95 A
rotation max. 1450 min-1

Equipment/Accessories :
- Schalter E/A
- 4 m Kabel mit Stecker
- Robustes Fahrgestell für 200 l Fass für AdBlue
- Automatic Nozzle with meter P61722
- Abgabeschlauch 2,2m (3/4")
- AF2-Kupplung und Ansaugschlauch zur Pumpe
- Steigleitung im Fass

Verpackungsgröße 1070 x 700 x 300 mm
weight 44 kg

Fueling Kit DRUM PLUS f. Urea (AdBlue) 230 V

with automatic plastic nozzle SB325
with automatic plastic nozzle SB325

Art. Nr. 81606AZKS325

Dry Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,6 bar
Inlet/outlet 3/4" plug
Material pump housing plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
rotation max. 2900 min-1
Switch ON/OFF , with cable and plug

Equipment/Accessories :
- Automatic plastic nozzle for AdBlue, art. P61700
- Nozzle holder
- Base plate for drum mounting
- AF2 adapter 2" ft with suction tube
and impurity air filter
- Discharge hose 6 m, 3/4"

weight 13 kg

Fueling Kit DRUM PLUS for Urea (AdBlue) 230 V

with autom. plastic nozzle and flow meter
with autom. plastic nozzle and flow meter

Art. Nr. 81606AZKS325ZW

Dry Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,6 bar
Inlet/outlet 3/4" plug
Material pump housing plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
rotation max. 2900 min-1
Switch ON/OFF , with cable and plug

Equipment/Accessories :
- Automatic plastic nozzle for AdBlue, art. P61700
- Nozzle holder
- Digital flow meter K24 for Urea (AUS32/AdBlue)
- Base plate for drum mounting
- AF2 adapter 2" ft with suction tube
and impurity air filter
- Discharge hose 6 m, 3/4"

weight 14 kg

Fueling Kit DRUM for Urea (AdBlue) , 230 V

w. diaphragm pump and manual plastic nozzle
w. diaphragm pump and manual plastic nozzle

Art. Nr. 81606

Dry Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,6 bar
Inlet/outlet 3/4" plug
Material pump housing: plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
rotation max. 2900 min-1rotation max. 2900 min-1
Switch ON/OFF , with cable and plug

Equipment/Accessories :
- Manual plastic nozzle for AdBlue
- Nozzle holder
- Base plate for drum mounting
- AF2 drum connector 2" mt with suction tube
and integrated impurity air filter
- Filling hose 6 m, 3/4"

weight 12 kg

Fueling Kit DRUM for Urea (AdBlue) , 230 V

with automatic stainless steel nozzle
with automatic stainless steel nozzle

Art. Nr. 81606AZZU

Dry Self Priming Diaphragm Pump
flow rate max. litres 35 l/min
flow rate max. m³ 2,1 m³/h
max. pressure 1,6 bar
Inlet/outlet 3/4" plug
Material pump housing plastic

Electric motor
Voltage (AC) 230 V, Nominal frequency 50 Hz
Nominal power 0,4 kW, Rated current (AC) 1,95 A
rotation max. 2900 min-1
Switch ON/OFF , with cable and plug

Equipment/Accessories :
- Automatic stainless steel nozzle, art. 131109ZU
- Nozzle holder
- Base plate for drum mounting
- AF2 adapter 2" ft with suction tube
and impurity air filter
- Discharge hose 6 m, 3/4"

weight 16 kg
