FORTIS® Diesel
A tank for safe fuel storage with a dispenser
A tank for safe fuel storage with a dispenser made of certified material which is resistant to weather and UV rays. The tank is protected against damage by its double-skinned structure. It comes equipped with a dispensing system from a recognised company and high quality filtering components. The white internal tank allows for a visual inspection of fuel purity.
Standard fittings:
- dispensing unit with a maximum capacity of 72 l/min, 230 V power supply
- fuel filter mounted on the suction pipe
- flow meter with a calibration option
- lockable fill point cabinet secured with two locks
- wireless fuel level sensor connected to the inter-skin space monitoring system
- dispensing hose 6 with an automatic nozzle which is cut off when the vehicle tank is full
- closed upper cover of the tank protects against unauthorised access
- 16″ service hatch in the inner skin enables thorough periodic cleaning of the tank
- tank vent is located in the filling cover
- fill point cabinet lighting (except FT2000 tanks)
Extra fittings:
- reel with a 10 and 14 m dispensing hose
- glass filter with water separator
- filling line with 2” hose and a quick release coupling to cisterns in the fill point cabinet
Storage tank for 2.500 L
- Capacity: 2500 L
- Dimensions of the tank (width. x height. x length. m) 1,26 x 1,51 x 2,60 m
- Colour of the tank: dark marble
- Colour of the door standard: green
- Raw material: Polyethylene
Storage tank for 5.000 L
- Capacity: 5000 L
- Dimensions of the tank (width. x height. x length. m) 2,38 x 2,03 x 2,95 m
- Colour of the tank: dark marble
- Colour of the door standard: green
- Raw material: Polyethylene
FORTIS Storage Tank 1000 for Diesel, K24 double wall, including pump and accessoires
Art. Nr. 1201000
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 1000 l Wall thickness about 5-6 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 56, 230 V - Fuel filter in metal housing, with water separator - Digital flow meter K24 - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Oil resistant suction hose - Lockable tank lid - With gas springs for comfortable opening and fixing of the lid - Mechanical fuel indicator - Big Inspection hatch 16 " - Electronic limit indicator for tank truck filling Dimensions diameter 155 cm x h 115 cm weight (including pump equipment) about 140 kg For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 10000 for Diesel, K33 double wall, including pump and accessoires
Art. Nr. 12010000A
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 9999 l Wall thickness about 9 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 72, 230 V - Fuel filter in metal housing, with water separator - Mechanical flow meter K33 - Lockable fill point cabinet secured w. two locks - Wireless fuel level sensor, connected to the inter-skin space monitoring system (leakage indicator) - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Lockable tank cap - 16" service hatch on outer wall allows cleaning of the tank - Tank ventilation in the filling cover - Fill point cabinet lighting - Electronic limit indicator for tank truck filling - Filling line w. overfill prevention and tank truck connection Dimensions ca. lenght 3,40 m x width 2,45 m x height 2,75 m weight (including pump equipment) about 650 kg For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 10000 for Diesel, K600 double wall, including pump and accessoires
Art. Nr. 12010000
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 9999 l Wall thickness about 9 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 72, 230 V - Fuel filter in metal housing, with water separator - Electronic flow meter K600 - Lockable fill point cabinet secured w. two locks - Wireless fuel level sensor, connected to the inter-skin space monitoring system (leakage indicator) - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Lockable tank cap - 16" service hatch on outer wall allows cleaning of the tank - Tank ventilation in the filling cover - Fill point cabinet lighting - Electronic limit indicator for tank truck filling - Filling line w. overfill prevention and tank truck connection Dimensions ca. lenght 3,40 m x width 2,45 m x height 2,75 m weight (including pump equipment) about 650 kg For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 1500 for Diesel, K24 double wall, including pump and accessoires
Art. Nr. 1201500
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 1500 l Wall thickness about 5-6 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 56, 230 V - Fuel filter in metal housing, with water separator - Digital flow meter K24 - Discharge hose 1" (conn.1" mt) lenght 6 m w. autom. nozzle A60 - Oil resistant suction hose - Lockable tank lid - With gas springs for comfortable opening and fixing of the lid - Mechanical fuel indicator - Big Inspection hatch 16 " - Electronic limit indicator for tank truck filling Dimensions diameter 155 cm x h 145 cm weight (including pump equipment) 150 kg For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 2000 for Diesel, K24 double wall, including pump and accessoires
Art. Nr. 1202000
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 2000 l Wall thickness about 5-6 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 56, 230 V - Fuel filter in metal housing, with water separator - Digital flow meter K24 - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Oil resistant suction hose - Lockable tank lid - With gas springs for comfortable opening and fixing of the lid - Mechanical fuel indicator - Electronic limit indicator for tank truck filling Dimensions ca.width 1,26 m x height 1,26 m x length 2,68 m weight (including pump equipment) about 210 kg For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 2500 for Diesel, K24 double wall, including pump and accessoires
Art. Nr. 1202500
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use. Rectangular design. max. filling content 2500 l Wall thickness about 5-6 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 56, 230 V - Fuel filter in metal housing, with water separator - Digital flow meter K24 - Discharge hose ¾“ lenght 6 m (conn. 1" mt) w. autom.nozzle A60 - Oil resistant suction hose - Lockable tank lid - With gas springs for comfortable opening and fixing of the lid - Mechanical fuel indicator - Electronic limit indicator for tank truck filling Dimensions ca.width 1,26 m x height 1,51 m x length 2,68 m weight (including pump equipment) about 240 kg For delivery please ensure the possibility to unload the tank (forklift)!

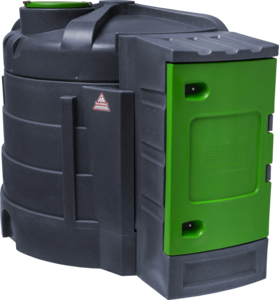

FORTIS Storage Tank 3000 for Diesel, K33 double wall, including pump and accessoires
Art. Nr. 1203000
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 3000 l Wall thickness about 4,4 - 5,5 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 72, 230 V - Fuel filter in metal housing, with water separator - Mechanical flow meter K33 - Lockable fill point cabinet secured w. two locks - Wireless fuel level sensor, connected to the inter-skin space monitoring system (leakage indicator) - Discharge hose 1" lenght 6 m (conn.1"mt) w. autom. nozzle A60 - Lockable tank cap - 16" service hatch on outer wall allows cleaning of the tank - Tank ventilation in the filling cover - Fill point cabinet lighting - Electronic limit indicator for tank truck filling Dimensions ca.width 2,06 m x height 1,94 m x length 2,63 m weight (including pump equipment) about 340 kg Optional: Filling line w. overfill prevention and tank truck connection art. 120500010 (highly reccommended; can not be added afterwards!) For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 5000 for Diesel, K33 double wall, including pump and accessoires
Art. Nr. 1205000A
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 5000 l Wall thickness about 9 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 72, 230 V - Fuel filter in metal housing, with water separator - Mechanical flow meter K33 - Lockable fill point cabinet secured w. two locks - Wireless fuel level sensor, connected to the inter-skin space monitoring system (leakage indicator) - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Lockable tank cap - 16" service hatch on outer wall allows cleaning of the tank - Tank ventilation in the filling cover - Electronic limit indicator for tank truck filling Dimensions ca.width 2,38 m x height 2,03 m x length 2,95 m weight (including pump equipment) about 380 kg Optional: Filling line w. overfill prevention and tank truck connection art. 120500010 (highly reccommended; can not be added afterwards!) For delivery please ensure the possibility to unload the tank (forklift)!
FORTIS Storage Tank 5000 for Diesel, K600 double wall, including pump and accessoires
Art. Nr. 1205000
Sturdy double wall storage tank made of polyethylene, UV resistant, for outdoor use max. filling content 5000 l Wall thickness about 9 mm (inner tank only) 10 years no leak warranty. Equipment/Accessories : - Self priming van pump Panther 72, 230 V - Fuel filter in metal housing, with water separator - Digital flow meter K600 - Lockable fill point cabinet secured w. two locks - Wireless fuel level sensor, connected to the inter-skin space monitoring system (leakage indicator) - Discharge hose 1" lenght 6 m (conn. 1" mt) w. autom. nozzle A60 - Lockable tank cap - 16" service hatch on outer wall allows cleaning of the tank - Tank ventilation in the filling cover - Fill point cabinet lighting - Electronic limit indicator for tank truck filling Dimensions ca.width 2,38 m x height 2,03 m x length 2,95 m weight (including pump equipment) about 380 kg Optional: Filling line w. overfill prevention and tank truck connection art. 120500010 (highly reccommended; can not be added afterwards!) For delivery please ensure the possibility to unload the tank (forklift)!
