drum pump features
- telescopic tube on suction side
- 2“ barrel connection with integrated dirt filter, return valve and pressure control valve
- nozzle holder
- water separating filter
- 4 meter filling hose (gasoline-resistant)
- automatic nozzle
optional: flow meter K33 ATEX
wall mounted features
- mechanical meter K33 ATEX
- metal suction filter
- hose for gasoline ATEX, 4 meters, D20
- automatic nozzle
optional: with water filter (Art. No.: P11698)
Dispensing kit Panther EX 56-BS/Z,K33 ATEX, 230V for Diesel/Petrol/Kerosene,HVO/XTL,on plate,w/o su
Art. Nr. P58400
Transfer Station for Petrol, Kerosene and Diesel for non-commercial use Vane Pump EX 50 flow rate max. litres 56 l/min flow rate max. m³ 3,36 m³/h max. pressure 1,8 bar Inlet/outlet 1" ft flange Material pump housing cast iron Integrated bypass valve Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,23 kW, Rated current (AC) 1 A rotation max. 2800 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/30 ATEX II2GExdIIAT4Gb Equipment/Accessories : Automat. Nozzle ATEX art. no. P61302 Mech. Flow Meter K33 ATEX Mesh strainer on suction line Anti-noise filter (eletromagnetic compatibility - EMC Gasoline Hose 3/4" Lenght 4 m, connection 1" mt x 1" mt mounted on plate Packing dimension 600 x 400 x 290 mm weight 16,5 kg
Drum Pump Diesel/Gasoline/Keros. EX100 AC 230V ATE with automatic nozzle, with flow meter K150 ATEX
Art. Nr. P39131
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 100 l/min flow rate max. m³ 6 m³/h max. pressure 2 bar Inlet/outlet 2" ft / 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter without suction tube Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,035 kW, Rated current (AC) 4,5 A rotation max. 1450 min-1 Motor protection (thermal) yes With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : 2" drum connector Automatic Nozzle A140 ATEX (P22675) Nozzle holder Mechanical flow meter K150 ATEX (P55503) Gasoline hose 1" length 4 m weight 33 kg
Drum Pump Diesel/Gasoline/Keros. EX100 AC 230V ATE with automatic nozzle, without flow meter
Art. Nr. P39130
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 100 l/min flow rate max. m³ 6 m³/h max. pressure 2 bar Inlet/outlet 2" ft / 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter without suction tube Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,035 kW, Rated current (AC) 4,5 A rotation max. 1450 min-1 Motor protection (thermal) yes With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : 2" drum connector Automatic Nozzle A140 ATEX (P22675) Nozzle holder Gasoline hose 1" length 4 m weight 31 kg
Drum Pump Diesel/Gasoline/Keros. EX140 AC 230V ATE with automatic nozzle, with flow meter K150 ATEX
Art. Nr. P39631
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 140 l/min flow rate max. m³ 7,2 m³/h max. pressure 2 bar Inlet/outlet 2" ft / 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter without suction tube Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,15 kW, Rated current (AC) 5 A rotation max. 1450 min-1 Motor protection (thermal) yes With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : 2" drum connector Automatic Nozzle A140 ATEX (P22675) Nozzle holder Mechanical flow meter K150 ATEX (P55503) Gasoline hose 1" length 4 m weight 33 kg
Drum Pump Diesel/Gasoline/Keros. EX140 AC 230V ATE with automatic nozzle, without flow meter
Art. Nr. P39630
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 140 l/min flow rate max. m³ 7,2 m³/h max. pressure 2 bar Inlet/outlet 2" ft / 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter without suction tube Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 1,15 kW, Rated current (AC) 5 A rotation max. 1450 min-1 Motor protection (thermal) yes With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : 2" drum connector Automatic Nozzle A140 ATEX (P22675) Nozzle holder Gasoline hose 1" length 4 m weight 31 kg

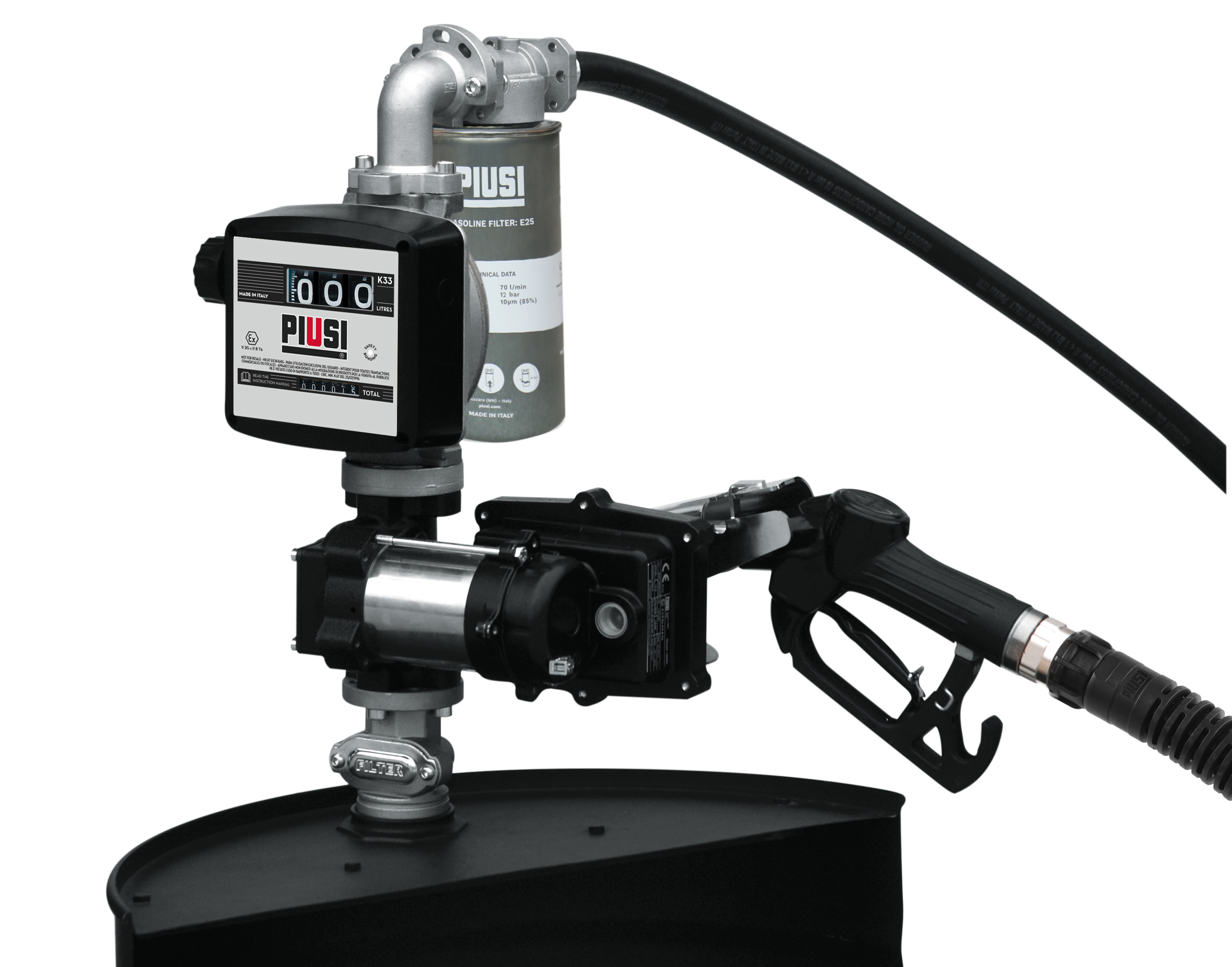

Drum Pump Diesel/Gasoline/Keros. EX50 AC 230V ATEX with autom. nozzle and flow meter K33 ATEX
Art. Nr. P37601
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,25 kW, Rated current (AC) 1 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/30 With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : With Water captor, 2" drum connector and telescopic pipe max. 1100 mm Automatic Nozzle ATEX, art. no. P61302 Nozzle holder Man. flow meter K33 ATEX Gasoline Hose , length 4 m weight 12 kg
Drum Pump Diesel/Gasoline/Keros. EX50 AC 230V ATEX with automatic nozzle, without flow meter
Art. Nr. P37401
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,25 kW, Rated current (AC) 1 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/30 With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : With Water captor, 2" drum connector and telescopic pipe max. 1100 mm Automatic Nozzle ATEX, art no. P61302 Nozzle holder Gasoline hose 3/4" length 4 m weight 12 kg
Drum Pump Diesel/Gasoline/Keros. EX50 DC 12V ATEX with automatic nozzle and flow meter K33 ATEX
Art. Nr. P37501
Drum Pump Diesel/Gasoline/Keros. flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (DC) 12 V Nominal power 0,25 kW, Rated current (DC) 21 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/60 min With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : With Water captor, 2" drum connector and telescopic pipe max. 1100 mm Automatic Nozzle ATEX, art no. P61302 Nozzle holder Mech. flow meter K33 ATEX Gasoline hose 3/4" , lenght 4 m weight 14 kg
Drum Pump Diesel/Gasoline/Kersos. EX50 DC 12V ATEX with automat. nozzle, without flow meter
Art. Nr. P37201
Drum Pump Diesel/Gasoline/Kersos. flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1"ft flange Material pump housing cast iron Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (DC) 12 V Nominal power 0,25 kW, Rated current (DC) 21 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/60 min With Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : With Water captor, 2" drum connector and telescopic pipe max. 1100 mm Automat. Nozzle ATEX, Art. P61302 Nozzle holder Gasoline hose 3/4" , length 4 m weight 14 kg
ST EX 50 AC 230V ATEX Transfer Station for petrol, kerosene and Diesel
Art. Nr. P37700
Transfer Station for petrol, kerosene and Diesel for non-commercial use Vane Pump EX 50 flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron Integrated bypass valve Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,25 kW, Rated current (AC) 1 A rotation max. 2700 min-1 Motor protection (thermal) yes ATEX II2GExdIIAT4Gb Equipment/Accessories: - Autom. ATEX nozzle - Mech. flow meter K33 ATEX - Mesh strainer on suction line - Anti-noise filter (electromagnetic compatibility) - Gasoline hose 4 mt, ¾ - mounted on plate Packing dimension 600 x 400 x 290 mm weight 12 kg
