Fuelling kits PRO | BASIC | DRUM for Urea (AUS 32, AdBlue®)
Complete fuelling kit, a good solution for use with IBC and smaller containers
- Powerful self priming diaphragm pump
- Digital flow meter K24 (type PRO)
- Suction hose with quick coupling
- 6 metre supply hose
- Automatic nozzle (on PRO and BASIC PLUS) or manual nozzle (on BASIC)
- Nozzle holder with drip collector
Add-on for cars
for fuelling kits to assemble on IBC containers
- For refuelling cars and trucks with AdBlue® using only one system
- With automatic nozzle and volume flow switch
- With practical plastic nozzle holder and drip collector
- With ball valve to switch between car and truck refuelling
- With plate for lateral mounting on IBC container with nozzle holder
max. Fördermenge
max. Förderdruck
Nennspannung
Dispensing kit 3 BASIC PLUS KS325 f.urea (AdBlue) diaphragm pump / autom.nozzle KS325
Art. Nr. 81618KS325
Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A Max. duty cycle 20 min. Switch ON/OFF 2 m cable with plug Equipment/Accessories : - Autom. stainl.steel nozzle KS325 - 6 m filling hose ¾“ - 1,5 m suction hose ¾“ with SEC quick coupling On stainless steel plate for lateral mounting to IBC Packing dimension 480 x 370 x 265 mm weight 14 kg
Dispensing kit 3 BASIC PLUS f. urea (AUS32AdBlue) diaphragm pump / autom. stainl. steel nozzle
Art. Nr. 81618
Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A Max. duty cycle 20 min. Switch ON/OFF 2 m cable with plug Equipment/Accessories : - Autom. stainl. steel nozzle A60 - 6 m filling hose ¾“ - 1,5 m suction hose ¾“ with SEC quick coupling On stainless steel plate for lateral mounting to IBC Packing dimonsion 480 x 370 x 265 mm weight 14 kg
Dispensing kit 3 BASIC for urea (AUS 32, AdBlue) with selfpriming diaphragm pump
Art. Nr. 81615
Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A Max. duty cycle 20 Min. Switch ON/OFF , 2 m cable with plug Equipment/Accessories ; - Manual nozzle for AdBlue with nozzle holder - 1,5 m suction hose ¾“ with SEC quick coupling - 6 m filling hose ¾“ - On stainless steel plate for lateral mounting to IBC Packaging 490 x 300 x 310 mm weight 13 kg

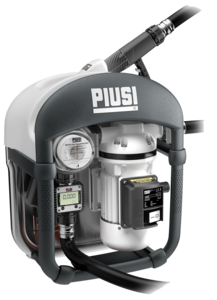

Dispensing kit 3 PRO FILTER f.Urea (AUS 32/AdBlue) 3D-Filter, autom.nozzle SB325, flowmeter K24
Art. Nr. 81620KS325
Self Priming Diaphragm Pump flow rate max. litres 34 l/min flow rate max. m³ 20,4 m³/h max. pressure 1,6 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A max. duty cycle 20 min. Switch ON/OFF Equipment/Accessories : - Automatic nozzle SB325 with stainless steel spout and Break-Away-System - Digital flow meter K24 - Discharge hose ¾“, length 6 m with hose holder - 1,5 m suction hose with SEC connector - Sturdy stainless steel plate for lateral mounting on IBC - 3D-Filter for AdBlue Packing diemensions 480 x 390 x 310 mm weight 14 kg
Dispensing kit 3 PRO f. Urea (AUS 32, AdBlue) with diaphragm pump, nozzle SB325, meter K24
Art. Nr. 81614KS325
Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A Max. duty cycle 20 min. Switch ON/OFF , 2 m cable with plug Equipment/Accessories : - Digital flow meter K24 - Automatic nozzle SB325 - Nozzle holder - 6 m filling hose ¾“ - 1,5 m suction hose ¾“ with SEC quick coupling - On stainless steel plate for lateral mountin on IBC tank Packing dimension 490 x 300 x 310 mm weight 13 kg
Dispensing kit 3 PRO f. Urea (AUS 32, AdBlue) with diaphragm pump, stainl.steel nozzle,meter K24
Art. Nr. 81614
Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,5 bar Inlet/outlet 3/4" Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A Max. duty cycle 20 min. Switch ON/OFF , 2 m cable with plug Equipment/Accessories : - Digital flow meter K24 - Automatic stainless steel nozzle A60 - Nozzle holder with drip collector - 6 m filling hose ¾“ - 1,5 m suction hose ¾“ with SEC quick coupling - On stainless steel plate for lateral mounting on IBC-Tank Packing dimension 480 x 370 x 265 mm weight 14 kg
Extension Unit Car Dispensing for AdBlue, for IBC Container
Art. Nr. 89001A
Equipment/Accessories : - Automat. Nozzle Elaflex for cars, max. 5 l/min. - 3 m discharge hose 3/4" - Ball valve to switch from car to truck refuellung - Mounting plate for IBC with nozzle holder - 1 m connectiing hose
Fueling Kit DRUM PLUS for Urea (AdBlue) 230 V with autom. plastic nozzle and flow meter
Art. Nr. 81606AZKS325ZW
Dry Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,6 bar Inlet/outlet 3/4" plug Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A rotation max. 2900 min-1 Switch ON/OFF , with cable and plug Equipment/Accessories : - Automatic plastic nozzle for AdBlue, art. P61700 - Nozzle holder - Digital flow meter K24 for Urea (AUS32/AdBlue) - Base plate for drum mounting - AF2 adapter 2" ft with suction tube and impurity air filter - Discharge hose 6 m, 3/4" weight 14 kg
Fueling Kit DRUM PLUS f. Urea (AdBlue) 230 V with automatic plastic nozzle SB325
Art. Nr. 81606AZKS325
Dry Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,6 bar Inlet/outlet 3/4" plug Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A rotation max. 2900 min-1 Switch ON/OFF , with cable and plug Equipment/Accessories : - Automatic plastic nozzle for AdBlue, art. P61700 - Nozzle holder - Base plate for drum mounting - AF2 adapter 2" ft with suction tube and impurity air filter - Discharge hose 6 m, 3/4" weight 13 kg
Fueling Kit DRUM for Urea (AdBlue) , 230 V w. diaphragm pump and manual plastic nozzle
Art. Nr. 81606
Dry Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,6 bar Inlet/outlet 3/4" plug Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A rotation max. 2900 min-1rotation max. 2900 min-1 Switch ON/OFF , with cable and plug Equipment/Accessories : - Manual plastic nozzle for AdBlue - Nozzle holder - Base plate for drum mounting - AF2 drum connector 2" mt with suction tube and integrated impurity air filter - Filling hose 6 m, 3/4" weight 12 kg
Fueling Kit DRUM for Urea (AdBlue) , 230 V with automatic stainless steel nozzle
Art. Nr. 81606AZZU
Dry Self Priming Diaphragm Pump flow rate max. litres 35 l/min flow rate max. m³ 2,1 m³/h max. pressure 1,6 bar Inlet/outlet 3/4" plug Material pump housing plastic Electric motor Voltage (AC) 230 V, Nominal frequency 50 Hz Nominal power 0,4 kW, Rated current (AC) 1,95 A rotation max. 2900 min-1 Switch ON/OFF , with cable and plug Equipment/Accessories : - Automatic stainless steel nozzle, art. 131109ZU - Nozzle holder - Base plate for drum mounting - AF2 adapter 2" ft with suction tube and impurity air filter - Discharge hose 6 m, 3/4" weight 16 kg
Data, Information, Pictures, Descriptions and Dimensions on the complete site are non-binding and follow only the purpose of visualization. All prices are without VAT, packing and transport.
