Pump certified under ATEX/IECEx directive for product safety in Europe (II 2 G Ex d IIA T4 Gb).
Fully-flanged components: Pump, flow meter and filters can be fitted or replaced without the use of sealing paste, making the connections quick and safe.
Features
- compact and sturdy construction
- cast iron body
- ON/OFF Switch
- anti-noise filter (electromagnetic compatibility EMC)
- integrated bypass valve
- thermal protect switch
Batterie Kit EXGO! 12V ATEX with switch with fuel pump, nozzle and hose
Art. Nr. P225X00
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 1,2 bar Inlet/outlet 3/4" ft Material pump housing cast iron Built in by-pass valve Electric motor Voltage (DC) 12 V Nominal power 0,084 kW, Rated current (DC) 10 A rotation max. 1400 min-1 Motor protection (thermal) yes Operating mode S1 continuous duty Anti-noise filter (electromagnetic compatibility EMC) 5 m cable with battery clamps Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb Equipment/Accessories : - manual nozzle - 2,5 m filling hose ¾“ - 1,5 m suction hose ¾“ - Fittings, Filter Mesh, PTFE-Tape - Ground clamp frame size 280 x 160 x 140 mm weight 9 kg
EX 100 AC 230 V, ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P390010
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 100 l/min flow rate max. m³ 6 m³/h max. pressure 2 bar Inlet 11/4" BSP Outlet 1" BSP Material pump housing cast iron With Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (AC) 230 V, 50 Hz Nominal power 1,035 kW, Rated current (AC) 4,5 A rotation max. 1450 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/60 Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb frame size 240 x 400 x 350 mm weight 23 kg
EX 140 AC 230 V, ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P395010
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 140 l/min flow rate max. m³ 7,2 m³/h max. pressure 2 bar Inlet 11/4" BSP Outlet 1" BSP Material pump housing cast iron With Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (AC) 230 V, 50 Hz Nominal power 1,15 kW, Rated current (AC) 5 A rotation max. 1450 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/60 Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb frame size 240 x 400 x 350 mm weight 21 kg
EX 50 AC 230 V, ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P37300
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron With Bypass valve built, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (AC) 230 V, 50-60 Hz Nominal power 0,25 kW, Rated current (AC) 1 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. duty cycle on/off 30/30 Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb frame size 253 x 141 x 172 mm weight 7,5 kg
EX 50 DC 12V ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P37100
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 50 l/min flow rate max. m³ 3 m³/h max. pressure 0,6 bar Inlet/outlet 1" ft flange Material pump housing cast iron Built in by-pass valve, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (DC) 12 V Nominal power 0,25 kW, Rated current (DC) 21 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. Duty cycle on/off 30/60 Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb frame size 253 x 141 x 172 mm weight 7 kg
EX 75 DC 12V ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P38000
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 75 l/min flow rate max. m³ 4,5 m³/h max. pressure 1,1 bar Inlet/outlet 1" ft flange Material pump housing cast iron Built in by-pass valve, non-return valve and pressure relief valve, integrated filter Electric motor Voltage (DC) 12 V Nominal power 0,24 kW, Rated current (DC) 20 A rotation max. 2700 min-1 Motor protection (thermal) yes Operating mode Max. Duty cycle on/off 30/30 Anti-noise filter (electromagnetic compatibility EMC) Without cable and plug Switch ON/OFF ATEX II 2 G Ex db IIB T4 Gb frame size 350 x 185 x 260 mm weight 8 kg

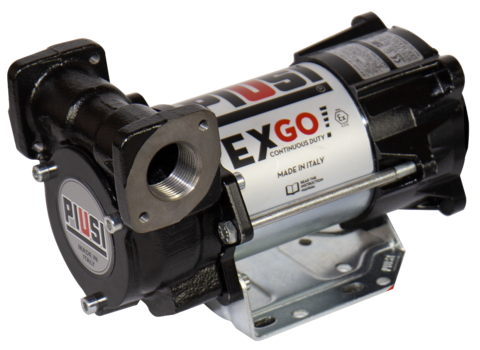

EX GO 12V ATEX Pump for Gasoline, Kerosene, Diesel
Art. Nr. P38150
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 1,2 bar Inlet/outlet 3/4" ft Material pump housing cast iron Built in by-pass valve Electric motor Voltage (DC) 12 V Nominal power 0,084 kW, Rated current (DC) 10 A rotation max. 1400 min-1 Motor protection (thermal) yes Operating mode S1 continuous duty Anti-noise filter (electromagnetic compatibility EMC) with 3 m cable ATEX II 2 G Ex d IIA T4 Gb frame size 280 x 160 x 140 mm weight 4,2 kg

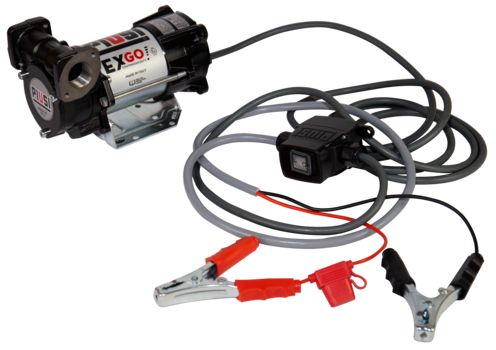

EX GO 12V ATEX with switch Pump for Gasoline, Kerosene, Diesel
Art. Nr. P38102
Pump for Gasoline, Kerosene, Diesel flow rate max. litres 32 l/min flow rate max. m³ 1,92 m³/h max. pressure 1,2 bar Inlet/outlet 3/4" ft Material pump housing cast iron Built in by-pass valve Electric motor Voltage (DC) 12 V Nominal power 0,084 kW, Rated current (DC) 10 A rotation max. 1400 min-1 Motor protection (thermal) yes Operating mode S1 continuous duty Anti-noise filter (electromagnetic compatibility EMC) with 5 m cable Switch ON/OFF ATEX II 2 G Ex d IIA T4 Gb frame size 280 x 160 x 140 mm weight 5,5 kg
